Taw qhia
DKJ-D (DY-J) series hluav taws xob actuator muaj cov lus qhia ua haujlwm, kom tus actuator tuaj yeem hloov kho hauv thaj teb. Yog tias muab nrog DFD hom hluav taws xob Manipulator, nws tuaj yeem ua tiav kev hloov pauv tsis muaj kev cuam tshuam ntawm "Manual Automatic" ntawm cov chaw taws teeb tswj kev tswj hwm thiab cov chaw taws teeb tswj kev ua haujlwm ntawm cov khoom kom tswj tau.
DKJ-D (DY-J) series hluav taws xob actuator yog txhua yam khoom siv hluav taws xob tshiab ua tiav los ntawm peb cov nroj tsuag raws li hom zoo tib yam DKJ hluav taws xob actuator los ntawm absorbing txawv teb chaws advanced technology thiab siv cov cuab yeej txawv teb chaws tshiab thiab cov cuab yeej tshiab, thiab nws muaj. ntse ua haujlwm nrog kev koom ua ke ntawm kev tswj Circuit Court thiab lub tshuab. DKJ-D(DY-J) hom hluav taws xob actuator tuaj yeem ncaj qha txais DCS los ntawm lub khoos phis tawj lossis 4-20mA lossis 1-5V los ntawm ntau lub chaw tswj hwm, tswj hwm ntau yam dampers, li qub, baffles thiab lwm yam kev tswj hwm yam tsis muaj Ntxiv kev teeb tsa ntawm servo amplifier, thiab nws tuaj yeem siv dav rau cov chaw nres tsheb fais fab, metallurgy, roj av, tshuaj thiab lwm yam lag luam.

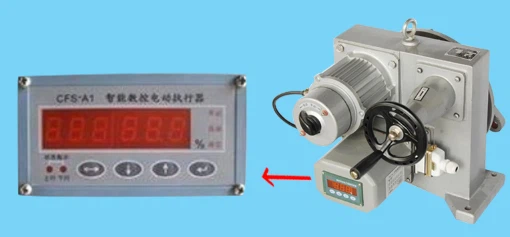

Customizable Digital Display
Feem ntau yam ntxwv
Cov khoom siv hluav taws xob ntse feem ntau muaj cov kua siv lead ua kua thiab cov khawm ua haujlwm, uas yog siv los tso saib ntau yam ntaub ntawv xwm txheej thiab cov ntaub ntawv teeb tsa thiab kev ua haujlwm. Piv nrog rau cov khoom siv hluav taws xob ib txwm muaj, cov ntse hluav taws xob hluav taws xob feem ntau muaj cov yam ntxwv hauv qab no:
(1) Lub ntsiab tsis zoo thiab cov kev taw qhia ntawm cov ntse hluav taws xob actuators yog siab heev, xws li kev ua haujlwm tuag, kev ua yuam kev yooj yim, hysteresis thiab lwm yam ntsuas tau mus txog lossis mus txog lub ntiaj teb qib siab.
(2) Lub tshuab hluav taws xob ntse tau txais kev siv tshuab microcomputer thiab cov khoom siv digital, hloov cov khoom siv hluav taws xob ib txwm siv nrog lub tshuab hluav taws xob ntse servo, thiab hloov cov thawj analog pointer hom neeg teb xov tooj nrog tus neeg teb xov tooj digital, uas daws qhov teeb meem ntawm qhov muag qaug zog los ntawm kev nquag. ntaus ntawm cov zaub digital. lus nug.
(3) Lub tshuab hluav taws xob ntse yog lub zog thiab siv tau yooj yim, nrog rau kev ua haujlwm xws li kuaj tus kheej, kho tus kheej thiab PI hloov kho, tshwj xeeb tshaj yog cov kev hloov kho PI tuaj yeem txuag lub hauv ntej-theem regulator thiab ncaj qha txais cov teeb liab transmitter.
(4) Lub ntse hluav taws xob actuator tau ntxiv cov software kho cov yam ntxwv ntws. Tom qab siv lub microprocessor, nws tuaj yeem hloov kho tau yooj yim thiab hloov cov yam ntxwv ntws, txhim kho kev tswj hwm kev tswj hwm lub valve, kom lub valve tswj nrog cov yam ntxwv muaj peev xwm tuaj yeem muaj ntau yam khoom tso tawm, kom lub valve tsis tuaj yeem hloov kho los ntawm kev tswj lub valve. cov duab ntawm tus spool (npauj npaim valve) kuj siv tau. Cov yam ntxwv ntws tuaj yeem hloov pauv, thiab cov yam ntxwv tsis yog tus qauv tuaj yeem raug kho raws li tus qauv qauv. Qhov kev ua haujlwm no yuav hloov qhov xwm txheej tam sim no ntawm kev kho cov yam ntxwv ntws los ntawm kev ua spool rau lub sijhawm ntev.
(5) Lub tshuab hluav taws xob ntse siv hluav taws xob siv hluav taws xob thiab kev hloov kho txuas ntxiv hauv kev hloov kho, thiab cov neeg kho tshuab kev sib txhuam nres tuaj yeem raug tshem tawm rau lub actuator nrog kev ua haujlwm ntawm tus kheej, uas txhim kho kev ntseeg tau ntawm tag nrho lub tshuab.
(6) Tus tsim ntawm peb-theem amplifier ntawm lub ntse hluav taws xob actuator txais kev sib xyaw ua ke ntawm kev sib txuas ntawm peb-theem fais fab hloov mus rau ib-theem ntse servo amplifier, uas yooj yim rau kev tsim khoom thiab kev npaj khoom, thiab muab qhov ua tau. rau kev tswj ntawm peb-theem fais fab mov hauv chav tswj.
parameter
Main Technical Parameters
1.Input signal: Hom m 4-20mA DC
2.Input channel: 3
3.Input channel impedance: Hom II 250Ω
4.Output torque: Saib cov lus saum toj no
5.Tag nrho lub sij hawm mus ncig: Saib cov lus saum toj no
6.Output teeb liab: 4-20mA Dc, on-load peev tsawg dua los yog sib npaug rau 750Ω
7.Limit ntawm qhov yuam kev yooj yim: ± 2.5%
8. Thaj chaw tuag: 0.5%-1.5% kho tau
9. Damping yam ntxwv: Tsawg dua los yog sib npaug rau 3 ib nrab voj voog
10. Rov qab sib txawv: Tsawg dua lossis sib npaug li 1.5%
11. Fais fab mov voltage: 220V (± 10%, ± 15%) zaus 50Hz
12. Kev pab cuam ib puag ncig kub: Actuator: -10 ~ +55 degree los yog -25 ~ +70 degree ; amplifier. 0 ~ +50 degree
13. Cov av noo ntawm ib puag ncig kev pabcuam: Actuator: Tsawg dua lossis sib npaug li 85% (tsis muaj cov tshuaj corrosive hauv huab cua ambient)
Daim ntawv thov nyob
Specifications thiab Qauv
DKJ-M on-off hom hluav taws xob actuator
Tag nrho cov qauv hauv qab no ntawm DKJ-D (DY-J) hluav taws xob lub quarter-tig hluav taws xob actuator yog sawv cev hauv DY-J
DKJ-B tawg pov thawj hom hluav taws xob actuator
Zuag qhia tag nrho thiab Installation Dimensions
The product has reasonable structure, strict production technology and quality management, so that the high reliability of the actuator is ensured, with Mean Time Between Failure (MTBF) >25000 xuab moos.2.Txoj hauj lwm transmitter switching circuit muaj siab induced voltage kuj, thiab nws cov kev ua tau zoo tshaj cov khoom zoo sib xws hauv tsev thiab txawv teb chaws.
Kev tswj cov cams tuaj yeem hloov kho ntawm nws tus kheej yam tsis muaj kev cuam tshuam, kom qhov kev hloov kho tau yooj yim thiab yooj yim. Lub AC ib-theem lub cev muaj zog yog siv nyob rau hauv lub siab torque actuator kom yooj yim rau kev siv cov kev tswj tsis siv neeg. Lub cev muaj zog nres lub log ua los ntawm cov ntaub ntawv tshwj xeeb muaj cov yam ntxwv ntawm kev txhim khu kev qha braking, kev pab lub neej ntev, thiab zoo dua rau cov khoom zoo sib xws.
