PEB -350
WE-350 Fais Actuator tshwj xeeb yog tsim los ua haujlwm me me pob li qub (1" thiab tsawg dua), dampers thiab lwm yam khoom siv peb lub hlis twg.
Nta
Compact thiab lub teeb yuag
• Muaj kev tiv thaiv corrosion vim muaj zog anodizing rau sab hauv thiab sab nraud nrog polyester hmoov txheej rau sab nraud • Ntau qhov hluav taws xob (85-265VAC/1PH, 24VDC)
• Txheem qhov chaw tso cua sov (0.5W)
• Huab cua pov thawj (IP67)
• Push Button thiab Manual lever
• Dav, yooj yim mounting puag txheem rau ISO 5211 (F03/F04/F05)
• (2) Kev Ua Haujlwm & (2) Kev Pabcuam, Qhib / Kaw, SPDT, 6A 125/250VAC
• Captive cover bolts
• Mechanical position indicator & LED teeb taw qhia (Qhib / Kaw)
Kev ua tau zoo

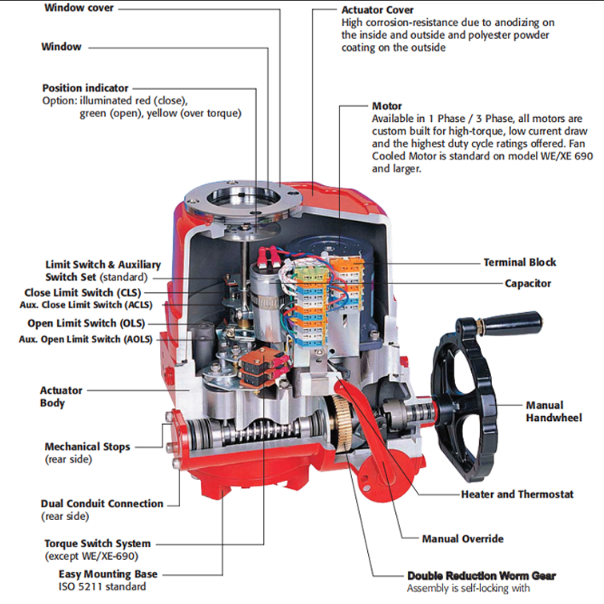

Fais Actuators WE/XE Nta
WE/XE-690 thru WE/XE-25900
WE/XE Series
Txheem Specifications
Npog
Series WE - Weatherproof, CSA Hom 4, 4X, IP67
Series XE - Explosion(Flame) Proof, ATEX/IECEx Ex d IIB T4 Gb, IP67
Series SE - Submersible, Hom 4, 4X, & 6, IP68, 10m rau 72hr
AWWA
Ua raws li AWWA C540-93 cov cai
Fais fab mov
12/24VDC, 24/110/220VAC 1PH, 220/380/440/460/480VAC 3 PH, 50/60Hz, ± 10%
Lub voj voog ua haujlwm IEC60034-1 S4, 50 feem pua -70 feem pua, 1200 pib ib teev (50 feem pua siab tshaj plaws ntawm 25 degree / 77 degree F)
Motor Class F
Reversible Induction lub cev muaj zog
Limit switches Qhib / Kaw, SPDT, 16A 1/2HP 125/250VAC, 0.6A 125VDC, 0.3A 250VDC;
(2) Kev Ua Haujlwm & (2) Kev Pabcuam Torque Qhib / Kaw, SPDT, 16A 1/2HP 125/250VAC, 0.6A 125VDC, 0.3A 250VDC (tsuas yog qhov loj -690 })
Kev tiv thaiv Stall Built-in thermal tiv thaiv, Qhib 302ºF (150ºC) / Kaw 207ºF (97ºC)
Lub kaum sab xis mus ncig 0 txog 90º ± 10º (Standard), 360º (Yeem)
Indicator Continuous position indicator
Phau ntawv override
Declutching mechanism
Self locking Muab los ntawm ob chav cab gearing
Mechanical stopper Qhib / Kaw (sab nraud adjustable screws)
Qhov chaw tso cua sov Anti-condensation 5-10 W (Standard) 30-45 W (Low-Temp xaiv)
Cable Conduit Ob 3/4 "NPT
Lubrication Grease moly (EP hom)
Terminal block Caij nplooj ntoos hlav loaded lever thawb hom
Khoom siv hlau, Aluminium alloy, AI bronze, Polycarbonate
ambient kub Standard: -4ºF — 158ºF Explosion Proof tus qauv: -4ºF — 140ºF
Ambient humidity 90 feem pua RH Max. (tsis condensing)
Anti-Vibration XYZ 10g, 0.2 ~ 34Hz, 30 feeb
Sab nrauv txheej
Anodizing kev kho mob ua ntej qhuav hmoov, Polyester
Kev xaiv
Wiring Diagram References
High Speed Electric Actuators
