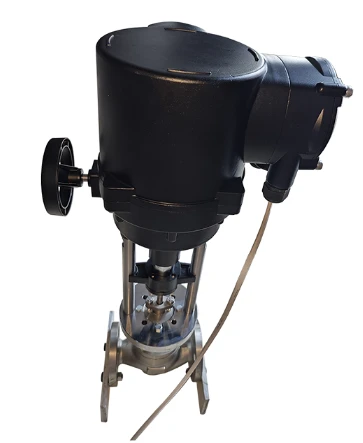

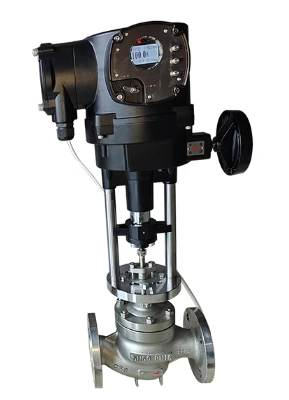

Linear-tig Electric Actuator
1. Lub valve tswj yog yooj yim los tswj thiab intrinsically muaj kev nyab xeeb. Tsis tas yuav muaj kev ntsuas qhov tawg ntxiv.
2. Lub servo amplifier txais kev sib sib zog nqus tawm tswv yim tsis zoo, uas tuaj yeem txhim kho qhov tseeb ntawm kev hloov kho tsis siv neeg.
3. Cov kua dej ua haujlwm ntawm lub valve tseem ceeb hauv txhua qhov kev qhia, yog li lub valve tuaj yeem ua haujlwm ruaj khov.
4. Txhua qhov chaw txav tau siv cov kabmob zoo nrog kev sib txhuam qis, lub neej ntev thiab tsis muaj suab nrov.
5. Cov tswj valve muaj cov thev naus laus zis zoo tshaj plaws, cov qauv zoo dua, cov dej ntws zoo, cov lus teb ceev ceev, thiab tuaj yeem hloov cov khoom tuaj txawv teb chaws.
6. Lub siab poob qis ntawm lub regulating valve yog me me, qhov tso zis quab yuam yog ruaj khov, ntws coefficient yog loj, thiab tus ntoo khaub lig-section ntawm cov channel yog sib npaug.
7. Lub valve tswj tau txais lub siab sib npaug ntawm lub tshuab hauv lub valve, uas ua rau cov tswj valve teb, meej hauv kev tswj, thiab tso cai rau lub siab sib txawv.
8. Lub cev tswj lub cev yog tsim los raws li lub hauv paus ntsiab lus ntawm cov kua dej mechanics nrog qhov tsis tshua muaj dej tsis kam ntawm qhov sib npaug ntawm qhov sib npaug, thiab qhov ntsuas ntws coefficient tau nce 30%.
9. Lub valve tswj muaj cov yam ntxwv ntawm qhov me me, lub teeb yuag, yooj yim siv, ntws loj, txuag hluav taws xob, thiab kev hloov kho siab.
Technical data
Lub hwj chim AC220V + 10% 50HZ (380, 110V, thiab lwm yam tuaj yeem kho tau)
Kev siv hom A: 50W Hom B: 150W Hom C: 220W Hom D: 300W
Input signal DC4-20mA lossis DC1-5V
Tso zis teeb liab DC 4-20mA (load tsis kam tsawg dua 500ohm)
Tswj qhov tseeb yuam kev: Tsawg dua los yog sib npaug rau 0.8% Rov qab qhov sib txawv: Tsawg dua los yog sib npaug rau 1% Thaj Chaw Tuag: Tsawg dua lossis sib npaug rau 1%
Kev hloov kho lub kaum sab xis Zero txoj haujlwm: ± 25%; Taug kev: 20% -100%
Txhawb ntau hom lus
Kev ua haujlwm yooj yim thiab siv tau yooj yim
Lub qhov rais zaub txhawb kev yooj yim Suav / tsoos Suav / Askiv thiab lwm yam lus
Faults thiab Solutions
Tsis muaj kev txiav txim, lub teeb hluav taws xob tawm
Txuas lub hwj huam mov
Lub cev muaj zog tsis pib, lub teeb hluav taws xob yog nyob rau, thiab lub teeb pom kev tawm tswv yim yog qhib.
Tshawb xyuas qhov voltage kom paub tseeb tias nws yog qhov qub. Teem lub input teeb liab xaiv hloov mus rau qhov tseeb txoj hauj lwm, txo lub ambient kub, txo qhov zaus thiab rhiab heev ntawm kev siv, los yog hloov lub capacitor, hloov cov hlau, los yog txuas cov hlau thiab cov ntsaws ntsaws.
Lub cev muaj zog oscillation, cua sov
Txheeb xyuas cov teeb liab tawm tswv yim kom tshem tawm kev cuam tshuam, kho qhov rhiab heev, siv lub potentiometer kom txo tau qhov rhiab heev, thiab xyuas kom nws zoo li qub.
Tsis muaj valve txoj hauj lwm tawm tswv yim teeb liab
Kos valve txoj hauj lwm tawm tswv yim teeb liab kab
Lub valve txoj hauj lwm tawm tswv yim teeb liab loj dhau los yog me dhau
Xyuas lub potentiometer installation thiab kho qhov xoom txoj hauj lwm thiab mus ncig potentiometer
Yog hais tias qhov kev txwv hloov ntawm cov zis ncej yog tsis tsim nyog (qhov txwv hloov ua ntxov dhau), nws yuav cuam tshuam rau kev kho mob stroke. Yog li ntawd, ua ntej qhov tso zis ncej yog hloov kho, txhawm rau tiv thaiv qhov kev txwv hloov ntawm kev ua haujlwm ntxov dhau, kho cov ntsia hlau ntawm qhov txwv cam yuav tsum tau xoob kom ncua qhov kev txiav txim ntawm qhov txwv hloov.
Thaum qhov xwm txheej hloov mus rau "lub xeev ua haujlwm zoo", (uas yog, raws li lub tswv yim teeb liab txo qis, cov zis ncej txav mus rau sab saud), lub teeb liab tawm tswv yim maj mam txo. Thaum lub teeb liab tawm tswv yim nyob rau hauv thaj tsam ntawm 3.7mA ~ 3.95mA, kho thiab zawm lub cam sab nraud kom ua rau qhov kev txwv kev hloov pauv thiab cov zis ncej nres txav mus. Thaum qhov xwm txheej hloov mus rau qhov "rov qab ua haujlwm xeev", (uas yog, raws li lub tswv yim teeb liab nce, cov zis ncej txav mus rau sab saud), lub teeb liab input maj mam nce. Thaum lub teeb liab tawm tswv yim yog nyob rau hauv thaj tsam ntawm 20.2mA ~ 20.5mA, kho thiab nruj rau sab nraud txwv cam kom ua rau qhov kev txwv hloov ua thiab cov zis tso zis nres txav mus.
Faults thiab Solutions
Ua tiav ntau yam
Ua kom tiav ntau yam ntawm cov khoom specifications Koj tuaj yeem nrhiav tau ib qho uas haum koj
Muaj zog thiab ruaj khov
Cov khoom zoo, muaj zog antioxidant zog thiab kav ntev
Meticulous kev ua haujlwm
Smooth workmanship thiab zoo nto sib tsoo tsis muaj burrs
Valve Internal Cheebtsam cov ntaub ntawv
Txoj kev tseem ceeb ntawm kev kho hardening
Feem ntau siv cov khoom siv hauv lub valve yog SUS304, SUS316, SUS316L, SUS410, SUS420, thiab lwm yam, thiab ua tiav raws li cov dej sib txawv. Txhawm rau tswj cov kua dej cavitation, cov kua dej uas muaj cov khoom muaj zog, thiab cov xwm txheej kub thiab kub siab, lawv yuav tsum tau ua kom tawv. kev kho mob kom ntev lub neej kev pab cuam ntawm lub valve.
Kev kho cua sov
a.304/316 khoom kho mob
Cov khoom siv no yog austenitic stainless hlau thiab feem ntau yog siv rau hauv kev ua haujlwm uas qhov nruab nrab yog corrosive lossis nyob rau hauv qhov kub thiab txias. Thaum qhov nruab nrab yog corrosive heev, kev kho yuav tsum tau nqa tawm. Lub hom phiaj ntawm kev kho tshuaj yog los txhim kho cov hardness thiab corrosion kuj ntawm cov khoom. Qhov kub thiab txias -196 ~ 530 degree
b.410/420 quenching thiab tempering kho (quenching + tempering) Cov khoom ntawm no series yog martensitic stainless hlau, uas yog ib qho zoo heev cavitation-resistant khoom. Nws yuav tsum tau quenched thiab tempered thaum siv nyob rau hauv high-temperature thiab high-pressure sib txawv. Lub hom phiaj ntawm quenching thiab tempering kev kho mob yog los txhim kho cov hardness ntawm cov khoom thiab ua kom nws lub neej kev pab nyob rau hauv hnyav ua hauj lwm tej yam kev mob. Qhov kub thiab txias -45 ~ 425 degree
c.17-4PH nag lossis daus hardening kev kho mob sib txawv thiab ntau npaum li cas ntawm ntxiv dag zog rau cov tshuaj muaj pes tsawg leeg ntawm stainless hlau, thiab ntau hom thiab ntau npaum ntawm carbides, nitrides, carbides thiab intermetallic compounds yog precipitated los ntawm cov nag lossis daus hardening txheej txheem, uas tsis tsuas yog txhim kho lub zog ntawm cov hlau tab sis tswj kom muaj zog txaus. Ib hom high-strength stainless hlau, hu ua nag lossis daus hardening. Qhov kub thiab txias -45 ~ 425 degree
Kev kho deg hardening
Kev kho cua sov saum npoo yog muab faib ua ob pawg: nto quenching thiab deg tshuaj kho cua sov. a. Nplaim cua sov nto quenching, tiv tauj hluav taws xob cua sov nto quenching, induction cua sov nto quenching, thiab lwm yam b. Carburizing, nitriding, carbonitriding, chromium boronizing, tooj liab infiltrating, thiab lwm yam.
Surface kho
Stellite cladding (lub ntsiab Cheebtsam Co, Cr, W) yog ib tug nquag siv hardening txoj kev kho nrog zoo heev corrosion kuj. Muaj ob txoj hauv kev ntawm Stellite surfacing: tag nrho surfacing thiab ib nrab surfacing. Tsis muaj cov txheej txheem kev cai rau cov txheej txheem surfacing tshwj xeeb. Nws feem ntau yog nyob ntawm qhov sib txawv thiab qhov kub thiab txias ntawm cov kua dej thiab seb cov kua muaj cov khoom puas. Cov hom ntawm surfacing welding yog raws li nram no:
