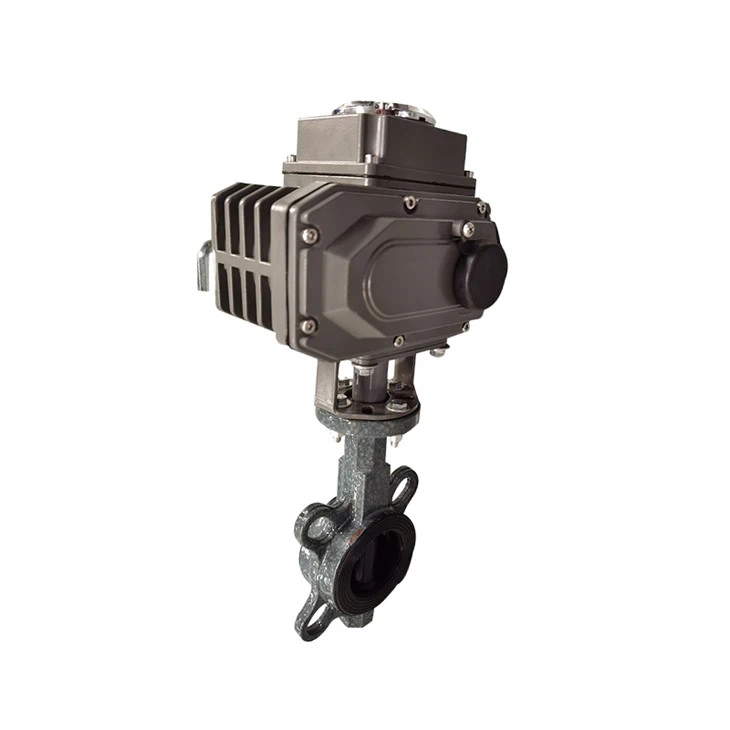

Fine Smart Electric Actuator
Lub zoo ntse hluav taws xob valve actuator yog nruab nrog npauj npaim valve, thiab nws lub neej ua haujlwm siab dua li cov qauv ntawm cov khoom zoo sib xws. Me me thiab hnav, yooj yim rau disassemble thiab kho, thiab tuaj yeem ntsia tau rau txhua qhov chaw.
Product Description
◆ Lub zog muaj zog: ntse, sib npaug, hloov, thiab ntau hom teeb liab tso zis;
◆ Compact me me: qhov loj tsuas yog li 35% ntawm cov khoom zoo sib xws;
◆ Lub teeb thiab pheej yig: qhov hnyav tsuas yog li 30% ntawm cov khoom zoo sib xws;
◆ Zoo nkauj thiab muaj kuab heev: Aluminium alloy tuag-cam khwb cia lub plhaub, zoo thiab du, thiab tuaj yeem txo cov electromagnetic cuam tshuam;
◆ Precision thiab hnav tsis kam: Kev sib xyaw ua ke ntawm tus cab iav tso zis ncej kom tsis txhob muaj qhov sib txawv ntawm qhov kev sib txuas tseem ceeb thiab muaj qhov sib kis tau zoo. Nws yog forged nrog tshwj xeeb tooj liab alloy thiab muaj lub zog siab thiab zoo hnav tsis kam.
◆ Kev nyab xeeb lav: Dhau AC1500V tiv thaiv qhov ntsuas hluav taws xob, F-chav insulated lub cev muaj zog, kev nyab xeeb lav:
◆ Yooj yim txuam: ib-theem fais fab mov, yooj yim sab nraud thaiv, 380V, DC fais fab mov kuj siv tau:
◆ Yooj yim rau siv: Tsis muaj refueling, tsis muaj tshuaj ntsuam xyuas, waterproof thiab xeb-pov thawj, installation ntawm txhua lub kaum sab xis:
◆ Cov cuab yeej tiv thaiv: ob npaug txwv, tiv thaiv overheating, tiv thaiv overload:
◆ Ntau qhov nrawm: tag nrho lub sijhawm mus ncig 9 vib nas this, 13 vib nas this, 15 vib nas this, 30 vib nas this, 50 vib nas this, 100 vib nas this (teev ua ntej tawm hauv lub hoobkas); ◆ Anti-corrosion thiab anti-xeb: tag nrho lub tshuab bracket, couplings thiab screws yog tag nrho cov ua los ntawm stainless hlau:
◆ Intelligent CNC: Lub ntse tswj module tau koom ua ke rau hauv lub tshuab hluav taws xob lub cev, tshem tawm qhov xav tau rau qhov chaw sab nraud. Kev teeb tsa digital, digital tuning, siab raug, kuaj tus kheej, ib lub tshuab nrog ntau lub zog.
Match Nrog Npauj Npaim Valve
Raws li kev sib txuas sib txawv, hluav taws xob npauj npaim li qub feem ntau tuaj yeem muab faib ua cov hluav taws xob wafer npauj npaim li qub thiab hluav taws xob flange npauj npaim li qub. Cov khoom sib khi muaj xws li cov ntsaws ruaj ruaj (qhov kub thiab txias) thiab cov ntsaws ruaj ruaj (qhov kub thiab txias). Cov khoom siv hluav taws xob ua haujlwm feem ntau suav nrog: AC220V, AC380V, DC24V, cov teeb liab tawm tswv yim suav nrog 4 ~ 20mA 0 ~ 10v thiab lwm yam tsis muaj zog tam sim no. Thaum kawg, raws li daim ntawv tswj, nws tau muab faib ua hom on-off thiab regulating hom. Hom qhib-tawm plays lub luag haujlwm ntawm kev hloov; hom kev tswj yog siv los kho qhov ntws thiab tuaj yeem raug Nws kuj yog ib qho tseem ceeb valve los kho qhov ntws mus rau ib txhiab ntawm ib qib.
Rubber Lined Npauj Npaim Valve
Cov roj hmab hauv ob sab hauv cov roj hmab-lined npauj npaim valve siv qhov kub thiab txias rau vulcanize cov roj hmab thiab lub valve lub cev rau hauv ib lub cev. Nws muaj cov khoom tiv thaiv corrosion siab heev thiab feem ntau yog siv los tswj qee cov kua dej uas muaj zog acid thiab alkali. Cov khoom sib khi hauv cov roj hmab-lined npauj npaim li qub suav nrog: roj hmab tawv NR siv tau qhov kub thiab txias: -10 degree ~ 85 degree, roj hmab muag BR siv tau qhov kub thiab txias: -10 degree ~ 85 degree, butyl roj hmab IIR siv tau kub: { {7}} degree ~ 120 degree , chlorine Siv tau kub ntawm butadiene CR: -10 degree ~ 105 degree ;
Qhov txawv ntawm Cov Kab Npauj Npaim Npauj Npaim Valve thiab Semi Lined Npauj Npaim Valve
1. Semi-lined npauj npaim valve txhais tau hais tias: npauj npaim valve tsis yog hlua nrog roj hmab, tab sis kev sib txuas ntawm tus npauj npaim valve thiab lub valve lub cev yog lined nrog roj hmab; 2. Cov kab npauj npaim tag nrho txhais tau tias: lub phaj npauj npaim ntawm lub npauj npaim valve thiab cov khoom txuas nrog lub valve lub cev yog lined nrog roj hmab.
Lub tshuab hluav taws xob npauj npaim valve siv lub zog hluav taws xob ua lub zog tsav. Lub tshuab hluav taws xob tsav lub valve qia, ua rau lub phaj npauj npaim tig 90 degree qhib thiab kaw lub valve. Nws tseem tuaj yeem tau txais 4 ~ 20mA lossis lwm yam teeb liab los ntawm kev lag luam automation tswj kom raug tswj lub valve qhib. , yog li ua tiav cov kev cai thiab tswj cov txheej txheem sib txawv xws li ntws, kub, thiab siab.
Pre-installation cov lus qhia rau wafer npauj npaim valve
1. Ua ntej kev teeb tsa thiab kev ua haujlwm, siv cov tshuaj tsuag cua kom tshem tawm cov khoom txawv teb chaws ntawm cov kav dej, thiab ntxuav cov kav dej nrog dej huv.
2. Ua tib zoo xyuas seb qhov kev siv lub valve puas yog raws li nws qhov kev ua tau zoo; (kub, siab)
3. Tshawb xyuas seb puas muaj cov khib nyiab hauv lub valve channel thiab sealing nto, thiab tshem tawm lawv raws sijhawm;
4. Lub valve yuav tsum tau nruab tam sim ntawd tom qab unpacking, thiab thov tsis txhob loosen tej fastening screws los yog ceev ntawm lub valve ntawm yuav; 5. Wafer-hom npauj npaim li qub yuav tsum siv tshwj xeeb npauj npaim valve flanges.
6. Cov hluav taws xob npauj npaim valve tuaj yeem ntsia tau rau ntawm cov kav dej ntawm txhua lub kaum sab xis. Rau qhov yooj yim ntawm kev txij nkawm, nws raug pom zoo kom tsis txhob nruab nws upside down.
7. Thaum txhim kho tus npauj npaim valve flange, koj yuav tsum xyuas kom meej tias lub flange nto thiab cov roj hmab sealing zoo sib xws, cov ntsia hlau tau nruj sib npaug, thiab lub sealing nto yuav tsum haum tag nrho; Yog hais tias cov screws raug nruj tsis sib npaug, cov roj hmab bulges yuav tshwm sim los thaiv cov npauj npaim phaj, los yog saum lub phaj npauj npaim. Kev tuav lub phaj npauj npaim ua rau cov pa tawm ntawm lub valve qia.
Qhov Taw Qhia
Npauj Npaim Valve Installation Thiab Kho
1. Thaum lub sij hawm installation, lub valve disc yuav tsum nres nyob rau hauv lub kaw txoj hauj lwm.
2. Txoj haujlwm qhib yuav tsum tau txiav txim siab raws li lub kaum sab xis ntawm lub phaj npauj npaim.
3. Rau cov npauj npaim li qub nrog lub bypass valve, lub bypass valve yuav tsum tau qhib ua ntej qhib.
4. Kev teeb tsa yuav tsum tau ua raws li cov chaw tsim khoom cov lus qhia installation.
Npauj npaim li qub uas hnyav hnyav yuav tsum tau nruab rau ntawm lub hauv paus ruaj khov.
