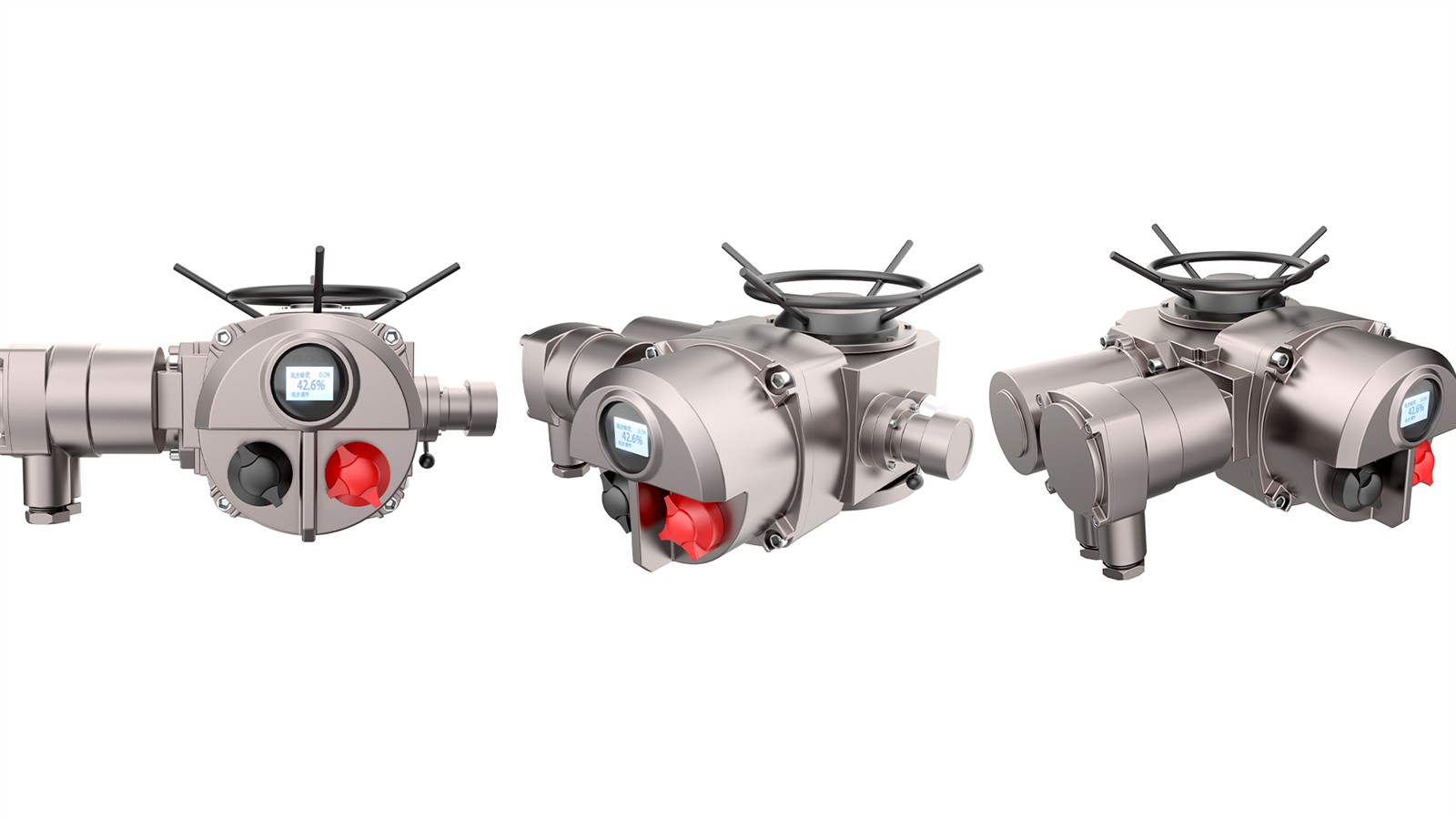

Nta ntawm cov hluav taws xob Actuator
Qhov no series hluav taws xob valve Actuator muaj cov yam ntxwv hauv qab no:
• Kev tsim kho cov tshuaj sib haum thiab muaj zog heev.
• Ntau yam kev sib txawv ntawm cov tshuaj sib txawv (Ntau-tig: 100-3500} nm).
• Ua ib qho nyuaj anodized txhuas vaj tse sab hauv thiab sab nraud nrog cov xim kub sab nraud rau kev siv tiv thaiv ib puag ncig kev lag luam.
• Cov ntaub ntawv uas muaj cov ntsaws ruaj ruaj
• LSO55211 tus qauv.
• Nws cia li cim tau thiab kho cov theem. Tsis siv neeg theem tsis ua hauj lwm tiv thaiv tiv thaiv cov cuab yeej siv hluav taws xob.
• Txhim khu kev qhaorical tshuab tsom iav tsom cov txheej txheem muab kev nyab xeeb hauv kev ua haujlwm zoo.
• Cov qhov rai loj loj thiab qhov ntsuas tau muab txoj haujlwm zoo dua los ntawm kev deb.
• Tus lej ntawm txoj haujlwm hauv zos tswj cov kev xaiv los muab kev ua haujlwm yooj yim thiab kev ua haujlwm.
Txheem Cov Qauv
|
Kev Tiv Thaiv Qib |
Tus Qauv IP67 |
|
Kev pab fais fab |
Peb-theem ac380v ---460 v 50 \/ 60Hz ib leeg-theem: AC110v-AC23V AC24V 50 \/ 60HZ |
|
Lub Luag Haujlwm Lub voj voog (tawm) |
S 2-15 feeb |
|
Lub Luag Haujlwm Lub voj voog (modulating) |
S4, 25% |
|
Kev thaiv tsev qib |
F |
|
Txoj Kev Tswj Xyuas |
Kev tswj hwm ib cheeb tsam \/ DCS \/ FCS (teb tswj kev tswj hwm) |
|
Lub cev muaj zog tiv thaiv |
Overheating \/ overload thiab luv Circuit Court \/ Instantaneous Ras \/ Englonic nres tiv thaiv |
|
Kev tiv thaiv lub zog tiv thaiv |
Mechanical Torque \/ Electronic Torque Kev Tiv Thaiv |
|
Jam tiv thaiv |
Tsim-hauv kev tiv thaiv zoo nkauj |
|
Kev Ua Tau Zoo Dua |
Tsawg dua los yog sib npaug ± 1% |
|
Yooj Yim Yuam Kev Txwv |
Tsawg dua los yog sib npaug rau 1% |
|
Tuag Thaj Chaw Teem |
{{0 {0}}. 1% -9. 9% hloov tau |
|
Sab nraud txheej |
Cov Xuas Kub Kub |
|
Thaj kub cua sov |
Txheem: {-20-+60 degree xaiv: -40-+70} degree |
|
Ambient noo |
90% rh max (tsis yog-condensing) |
|
Tawg tawg-ua pov thawj |
Exdi, Exdib II BT4, Exdib II CT4 (IECEx \/ ATEX) |
|
Yam ua hauj lwm |
LCD Suav \/ Askiv zaub qhov rai thiab kev ua haujlwm hauv zej zog Cais FAIS FEEM Qhab Pom Kev Qhia Txog thiab Phase Disconnection Kev Tiv Thaiv Chaw teeb tsa thiab tswj Txhaum tus kheej-kuaj mob thev naus laus zis Modbus Rtu, Profidbus DP, HART, FF, DEVICENE (YOOJ YIM) |
|
Cim hom |
A: Lub chaw taws teeb caij ntuj sov qhuav hu, teeb liab mem mem quav (inching) B: Lub chaw taws teeb hla kev sib cuag qhuav, teeb liab ntev mem tes (tuav) C: Nquag DC24V Teeb Liab D: nquag AC220V teeb liab E: Tej thaj chaw deb DC 4-20 ma teeb liab |
|
Kev taw qhia cov lus qhia |
A: Qhib, kaw, nres paib B: Txhaum teeb liab C: Valve-DC 4-20 ma, dc {{v, dc 0-10 v) D: Kev tswj chaw taws teeb hluav taws xob |
Phab Valve

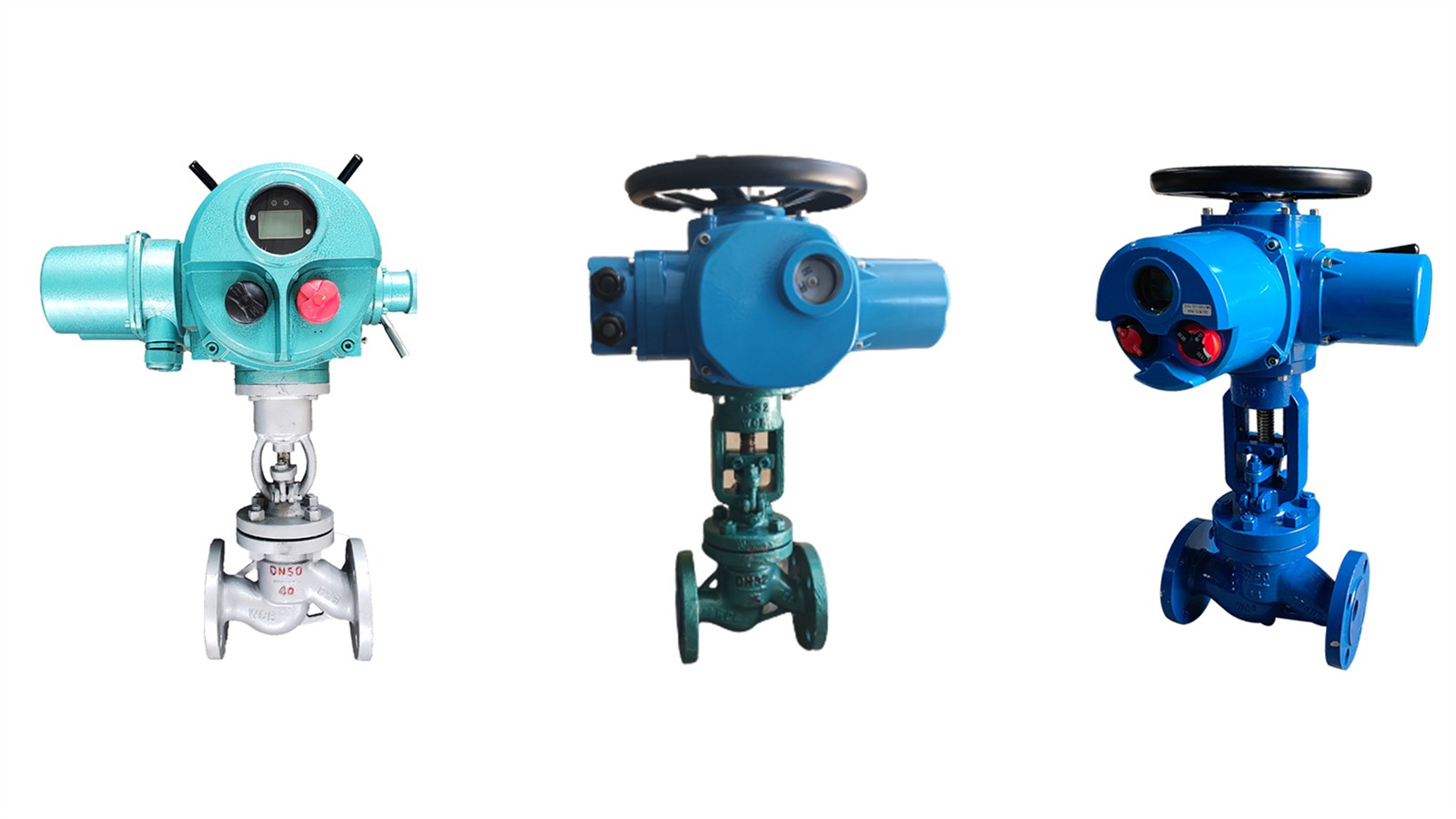

Ntau tig hluav taws xob hluav taws xob ua haujlwm yog qhov haum rau cov li qub, lub ntiaj teb li qub, diaphragm li qub, thiab lwm yam uas tau tig 360 degrees.
Phab Ntsa Hluav Taws Xob Valve
Hluav Taws Xob Ntiaj Teb Valve
Cov ntaub ntawv txheej txheem
|
Tus qauv |
Torque |
Laj hov ceev (RPM) |
Lub cev muaj zog (Kw) |
Rated tam sim no (a) |
Los Ntawm Txhais Tes piv |
Qhov siab tshaj plaws kav qhov dav (hli) |
Qho hnyav (Kg) |
|
Fryz10 |
100 |
18 |
0.25 |
1.6 |
1:80 |
28 |
25 |
|
24 |
0.25 |
1.9 |
1:60 |
||||
|
36 |
0.37 |
2.2 |
1:40 |
||||
|
48 |
0.55 |
2.8 |
1:30 |
||||
|
72 |
0.75 |
4.1 |
1:40 |
||||
|
96 |
1.1 |
6.5 |
1:30 |
||||
|
Fryz15 |
150 |
18 |
0.37 |
2.2 |
1:80 |
28 |
28 |
|
24 |
0.37 |
2.5 |
1:60 |
||||
|
36 |
0.55 |
2.8 |
1:40 |
||||
|
48 |
0.55 |
3.1 |
1:30 |
||||
|
72 |
1.1 |
6.5 |
1:40 |
||||
|
96 |
1.5 |
7.9 |
1:30 |
||||
|
Fryz20 |
200 |
18 |
0.55 |
2.8 |
1:80 |
40 |
30 |
|
24 |
0.55 |
3.1 |
1:60 |
||||
|
36 |
0.75 |
4.1 |
1:40 |
||||
|
48 |
0.75 |
4.7 |
1:30 |
||||
|
72 |
1.5 |
7.9 |
1:40 |
||||
|
96 |
2.2 |
12.6 |
1:30 |
||||
|
Fryz30 |
300 |
18 |
0.55 |
2.8 |
1:80 |
40 |
31 |
|
24 |
0.75 |
4.1 |
1:60 |
||||
|
36 |
1.1 |
6.5 |
1:40 |
||||
|
48 |
1.1 |
7.2 |
1:30 |
||||
|
72 |
2.2 |
12.6 |
1:40 |
||||
|
Fryz45 |
450 |
24 |
1.1 |
6.5 |
1:60 |
48 |
47 |
|
36 |
1.5 |
7.9 |
1:40 |
||||
|
48 |
2.2 |
12.6 |
1:30 |
||||
|
72 |
3 |
13.5 |
1:40 |
||||
|
Fryz60 |
600 |
24 |
1.5 |
7.9 |
1:60 |
48 |
50 |
|
36 |
2.2 |
12.6 |
1:40 |
||||
|
48 |
2.2 |
13.1 |
1:30 |
||||
|
72 |
4.0 |
15.2 |
1:40 |
||||
|
Fryz90 |
900 |
24 |
2.2 |
12.6 |
1:60 |
60 |
65 |
|
40 |
3.0 |
13.5 |
1:36 |
||||
|
48 |
4.0 |
15.2 |
1:30 |
||||
|
Fryz120 |
1200 |
24 |
3.0 |
13.5 |
1:60 |
60 |
69 |
|
40 |
4.0 |
15.2 |
1:36 |
||||
|
Fryz180 |
1800 |
18 |
4.0 |
15.2 |
1:80 |
70 |
150 |
|
36 |
5.5 |
17.1 |
1:40 |
||||
|
Fryz250 |
2500 |
18 |
5.5 |
17.1 |
1:80 |
70 |
162 |
|
36 |
7.5 |
19.6 |
1:40 |
||||
|
Fryz350 |
3500 |
18 |
5.5 |
19.6 |
1.80 |
80 |
171 |
Qho loj
Fryz Ntau-Tig Fais Fab Hluav Taws Xob
|
Tus qauv |
L |
L1 |
H |
H1 |
d2 |
F1 |
F2 |
φD |
|
Fryz 10-15 |
382 |
228 |
233 |
87 |
45 |
150 |
203 |
300 |
|
Fryz 20-30 |
435 |
278 |
248 |
90 |
39 |
157 |
210 |
350 |
|
Tus qauv |
H |
L |
L1 |
L2 |
L3 |
L4 |
φD |
|
Fryz 45-60 |
338 |
708 |
335 |
401 |
305 |
115 |
250 |
|
Fryz 90-120 |
347 |
795 |
390 |
423 |
312 |
135 |
250 |
|
Fryz 180-250 |
408 |
825 |
445 |
462 |
347 |
165 |
350 |
|
Fryz350 |
408 |
905 |
530 |
462 |
347 |
165 |
350 |
Kev sib txuas qhov ntev
Fryz Ntau-Tig Fais Fab Hluav Taws Xob
Torque hom
|
Tus qauv |
Flange Code |
D |
D1 |
D2 |
d2 |
d1 |
h |
h1 |
f |
b |
n-d |
|
Fryz 5-15 |
2 |
145 |
120 |
90 |
45 |
30 |
8 |
2 |
5 |
12 |
4-M10 |
|
2(I) |
115 |
95 |
75 |
39 |
26 |
6 |
2 |
5 |
10 |
4-M8 |
|
|
Fryz 20-30 |
3 |
185 |
160 |
125 |
58 |
42 |
10 |
2 |
5 |
15 |
4-M12 |
|
3(I) |
145 |
120 |
90 |
45 |
30 |
8 |
2 |
5 |
12 |
4-M10 |
|
|
Fryz 45-60 |
4 |
225 |
195 |
150 |
72 |
50 |
12 |
2 |
5 |
20 |
4-M16 |
|
Fryz 90-120 |
5 |
275 |
235 |
180 |
82 |
62 |
14 |
2 |
5 |
25 |
4-M20 |
|
5(I) |
230 |
195 |
150 |
72 |
50 |
12 |
2 |
5 |
20 |
4-M16 |
|
|
Fryz 180-250 |
7 |
330 |
285 |
220 |
98 |
72 |
16 |
3 |
6 |
30 |
4-φ27 |
|
Fryz 350-500 |
8 |
380 |
340 |
280 |
118 |
82 |
20 |
3 |
6 |
35 |
8-φ22 |
Thrust hom
|
Tus qauv |
Flange Code |
D |
D1 |
D2 |
D1 Max. |
n-d |
L |
f |
|
Fryz 5-15 |
F10 |
125 |
102 |
70 |
T28 |
4-M10 |
40 |
3 |
|
Fryz 20-30 |
F14 |
175 |
165 |
100 |
T40 |
4-M16 |
55 |
4 |
|
Fryz 45-60 |
F16 |
210 |
254 |
130 |
T48 |
4-M20 |
70 |
5 |
|
Fryz 90-120 |
F25 |
300 |
298 |
200 |
T60 |
8-M16 |
90 |
5 |
|
Fryz 180-250 |
F30 |
350 |
356 |
230 |
T70 |
8-M20 |
130 |
5 |
|
Fryz 350-500 |
F35 |
415 |
102 |
260 |
T80 |
8-M30 |
130 |
5 |
