Kev siv
DZW.DQW series sab nraum zoov hluav taws xob valve actuator yog cov cuab yeej tsav tsheb ntawm hluav taws xob valve, uas yog siv los tswj qhov qhib thiab kaw ntawm lub valve. DZW series multi-tig hluav taws xob cov cuab yeej tsim nyog rau lub rooj vag li qub, lub ntiaj teb li qub, lub tog raj kheej, thiab cov diaphragm li qub. DQW thiab DJW ib feem-tig hluav taws xob cov khoom siv yog cov khoom siv ntawm DZW cov khoom thiab tsim nyog rau npauj npaim li qub, pob li qub thiab dampers. Nws tuaj yeem ua raws li cov lus qhia tswj. Nws yog ib qho khoom siv tsav tsheb tsis tseem ceeb rau cov chaw taws teeb tswj, kev tswj hwm hauv nruab nrab thiab tsis siv neeg tswj ntau yam li qub thiab dampers. Cov khoom lag luam no tsis yog siv rau hauv cov chaw siv hluav taws xob nkaus xwb, tab sis kuj tseem siv hauv petrochemical, metallurgical, thiab kev siv hluav taws xob rau pej xeem thiab lwm yam.
Nta
1. Cov cuab yeej muaj plua plav-pov thawj, tsis muaj dej thiab lub teeb-corrosion-pov thawj, thiab nws qib tiv thaiv yog IP55.IP65 (kev txiav txim tshwj xeeb)
2. Lub torque tswj mechanism yog txhim khu kev qha, yooj yim kho, thiab siab torque repeatability:
3. Lub tshuab hluav taws xob tswj tau muaj qhov raug hloov kho siab thiab rov ua dua, thiab tuaj yeem nruab nrog 2 mus rau 4 micro keyboards rau qhib thiab kaw cov lus qhia.
4. Lub semi-automatic phau ntawv-hluav taws xob switching mechanism yog saws nyob rau hauv lub qis iav, thiab cov qauv yog yooj yim. Txhim khu kev ua haujlwm thiab kev ua haujlwm yooj yim 5. Peb-theem asynchronous lub cev muaj zog rau hluav taws xob valve actuator tau txais yuav, nrog lub zog pib loj thiab lub sijhawm me me ntawm inertia
6. Nruab nrog txhua yam valve txoj hauj lwm qhia
Kev sib xyaw

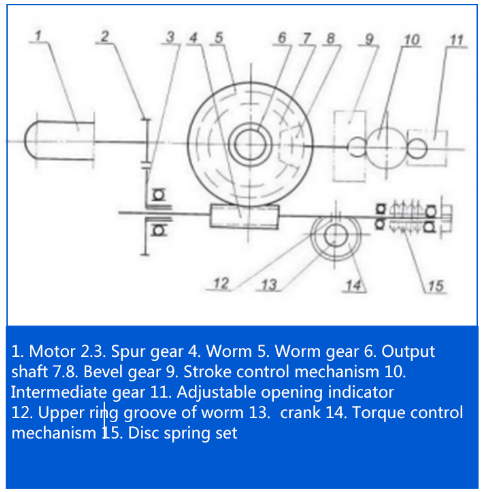

Transmission schematic daim duab
Hluav taws xob qhov chaw
Qhov taw qhia qhib thiab tus tswj kev mob stroke yog cov qauv sib xyaw ua ke, uas yog ib feem ntawm tag nrho cov koob. Lub input iav yog tsav los ntawm cov iav ntawm lub txee. Tom qab deceleration, qhov taw qhia phaj tig nrog cov txheej txheem ntawm kev qhib thiab kaw lub valve kom qhia qhov qhib lossis kaw txoj haujlwm ntawm lub valve. Lub kaum sab xis ntawm lub potentiometer thiab lub taw qhia phaj tig synchronously rau cov chaw taws teeb qhib qhov taw qhia, thiab lub kaum sab xis ntawm qhov qhib txoj hauj lwm thiab qhov chaw kaw ntawm qhov taw qhia phaj tuaj yeem hloov pauv los ntawm kev txav tus naj npawb ntawm cov kiv puag ncig los kho cov iav.
Tus tswj kev mob stroke txais lub hauv paus ntsiab lus ntawm tus lej lej, uas muaj kev tswj xyuas siab. Feem ntau rau tag nrho cov series. Nws txoj hauv kev ua haujlwm yog: ib khub ntawm qhov loj thiab me kawg lub zog hauv lub thawv txo qis tsav lub zog pinion (Z=8), thiab tom qab ntawd tsav lub tshuab hluav taws xob ua haujlwm. Tom qab tus tswj kev mob stroke raug kho raws li qhov qhib thiab kaw txoj haujlwm ntawm lub valve, thaum tus maub los tig mus rau qhov chaw teeb tsa nrog cov zis tawm, lub cam yuav tig 90 degree, yuam lub micro hloov mus ua, disconnecting lub hwj chim ntawm lub lub cev muaj zog, thiab lub cev muaj zog nres, yog li kom paub txog kev tswj hluav taws xob actuator stroke txwv.
Lub cev muaj zog yog sab nraud, nrog kev ua tau zoo ntawm lub zog, qhov tso zis ceev ntawm cov khoom muaj ntau yam kev xaiv, thiab cov zis torque ua tiav raws li GB / T24923-2010 tus qauv
Lub hom phiaj hluav taws xob hluav taws xob txais yuav lub qhov rais qhov rais, thiab cov kev hloov kho hom actuator txais cov qauv tsim ntawm qhov taw qhia qhov rais qhov rais iav nto thiab cov pob qhov rooj recessed los tiv thaiv dej tsub zuj zuj.
Kev ywj pheej kaw lub davhlau ya nyob twg thaiv tuaj yeem ua kom muaj kev sib khi ntawm cov khoom hluav taws xob hauv lub tshuab hluav taws xob thiab txhim kho kev tiv thaiv muaj peev xwm ntawm tus actuator.
