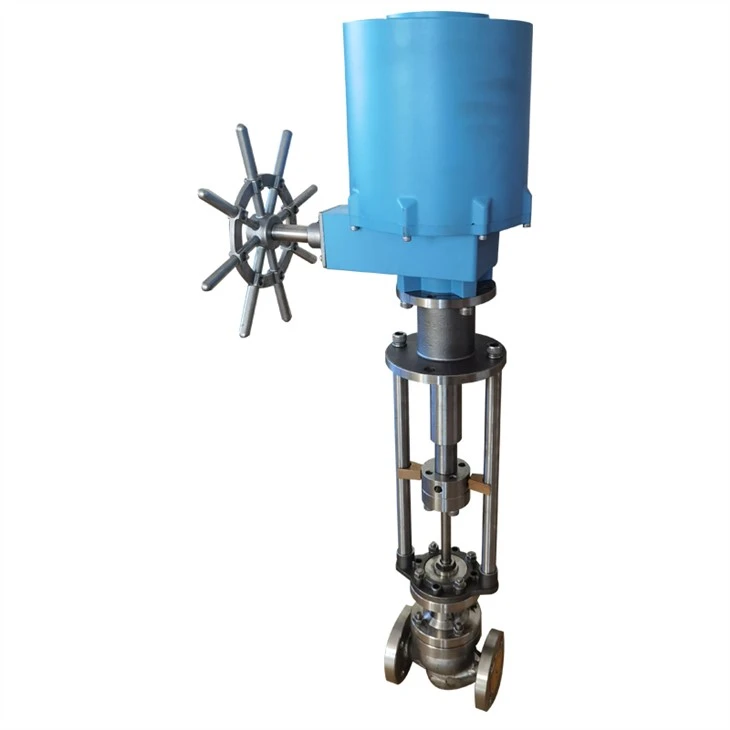

DLA & DSL-Ex Linear-tig Electric Actuator 24V 220V 380V

Linear-tig Electric Actuator

Cov yam ntxwv tshwj xeeb

1 Kev hloov kho mob stroke tuaj yeem teeb tsa arbitrarily nyob rau hauv tag nrho cov hlab ntsha tawg ntawm lub valve machinery, nrog rau cov kev taw qhia ntawm valve qhib thiab kaw;

2 Qhov ceev tuaj yeem hloov kho arbitrarily nyob rau hauv 20 feem pua ​​-100 feem pua ​​​​ntawm qhov tso cai ceev ntau ntawm tus actuator;

3 Cov teeb liab tawm tswv yim thiab cov lus tawm tswv yim tuaj yeem sib xyaw ua ke, piv txwv li: tswv yim 4-20mA tawm tswv yim M-BUS lossis 0-10V;

4 Muab 3 theem ntawm thrust xaiv;

5 Anti-jamming chaw yog muab rau tshwj xeeb ua hauj lwm tej yam kev mob, xws li tar nruab nrab ua hauj lwm tej yam kev mob;

6 Muab qhov chaw ntsuas cua sov, uas tuaj yeem qhib thaum qhov kub thiab txias qis dua -20 degree kom lub cev muaj zog thiab lub rooj tsav xwm hluav taws xob ntawm qhov kub thiab txias;

7. Zero them nyiaj ua haujlwm yog xaiv tau.

Stroke: 100 hli (ntau tshaj 100 strokes tuaj yeem kho)

Ua hauj lwm voltage: AC380\AC220\AC24\DC24 Lwm qhov voltages tuaj yeem kho

Kev khiav ceev: 20 feem pua ​​-100 feem pua ​​adjustable Fais fab: 60W

Thrust xaiv: Peb hom thrust yog muab rau cov neeg siv xaiv. Thrust hom 2 yog tus qauv thrust, hom thrust yog li ntawm 10 feem pua ​​​​me me, thiab thrust hom 3 yog li 10 feem pua ​​​​loj.

Tswj / tawm tswv yim teeb liab: {{0}}mA, 0-10V, MODUS, tus nqi hloov pauv (valve hloov txoj hauj lwm tawm tswv yim txhaum cai tawm tswv yim teeb liab yog xaiv tau) tswj thiab tawm tswv yim teeb liab kuj tseem muaj ntau hom teeb liab Control Qhov tseeb: ± 0.05 feem pua, 0-10V teeb liab 1 feem pua

Rov pib dua muaj nuj nqi: Fais fab-tawm thiab tawm-sib nqus tuav txoj hauj lwm (off-signal reset yog xaiv tau)

Cov yam ntxwv kho kom haum: linear (sib npaug piv yeem xaiv tau)

Stroke Calibration: Ob hom tsis siv neeg calibration thiab phau ntawv calibration yog muab. Nws tuaj yeem raug ntsuas ntsuas tau thaum lub tshuab txwv tsis pub siv, Thaum lub sij hawm phau ntawv calibration, nws tuaj yeem teeb tsa nyob rau hauv tag nrho cov kev txwv ntawm txhua yam.

Cov xwm txheej zaub: tswj hom, thrust hom, xoom txoj hauj lwm, kev khiav hauj lwm tsis, tawm teeb liab, teeb liab overcurrent thiab overvoltage, thiab lwm yam. Ambient kub: -20-50 degree (lwm yam kub yog xaiv tau)

Kev tiv thaiv chav kawm: IP65 (IP67 yeem) Kho txoj hauj lwm: valve txoj hauj lwm mechanical indication, zaub zaub

Kev tuav haujlwm: tsis tas yuav hloov, ua haujlwm ncaj qha ntawm lub tshuab tes tuav thaum lub hwj chim tawm, thiab khawm ua haujlwm thaum lub hwj chim qhib. Fault alarm: qhia txog kev ua txhaum lub tswb, qhov taw qhia lub teeb ceeb toom.

Kev tiv thaiv torque: Pom tau los ntawm kev tswj cov zis hluav taws xob ntawm lub cev muaj zog, tsis siv cov keyboards los txo qhov tsis ua haujlwm.

Chaw taws teeb tswj muaj nuj nqi: infrared chaw taws teeb tswj (yeem)

Hluav taws xob sib cuam tshuam: Cov qauv teeb tsa tsim nyog rau 2 8-12mm cable interfaces, lwm yam cuam tshuam tuaj yeem hloov kho, thiab 3 interfaces tuaj yeem muab.

Installation thiab Debugging cov kauj ruam

1 fasten lub actuator rau lub valve;

2 Cov kab hluav taws xob

2.1 Fais fab mov: DC24V----L1 txuas nrog tus ncej zoo, L2 txuas nrog tus ncej tsis zoo; AC24V----L1\L2 tsis hais polarity; AC220V---L1\L2 tsis hais polarity; AC380---L1\L2 txuas nrog rau ob lub xov tooj nyob.

2.2 Cov lus ceeb toom teeb liab thiab lub tswb ceeb toom lub peev xwm ntawm lub valve qhib txoj hauj lwm valve kaw txoj hauj lwm: DC24V / 2A, AC250V / 2A; Valve qhib thiab kaw kaw cov cim qhia yuav tsum tau teev tseg ua ntej xaj yog tias siv cov teeb liab nquag.

2.3 Cov khoom siv hluav taws xob thiab tswj cov teeb liab ntawm cov kab hluav taws xob yuav tsum tau sib cais kom tsis txhob cuam tshuam nrog lub teeb liab.

3 Zaub interface

4 LED teeb

Lub actuator muab tag nrho 6 xim ntawm LED qhov taw qhia teeb, thiab cov xim ntawm sab laug mus rau sab xis yog txiv kab ntxwv, xiav, dawb, liab, ntsuab, thiab daj. nyob rau hauv: Lub teeb txiv kab ntxwv yog lub tswb ceeb toom lub teeb, thaum lub hwj chim mov undervoltage los yog overvoltage tshwm sim, lub teeb yuav flash, txwv tsis pub nws yuav tawm; Lub teeb xiav yog lub cev muaj zog qhov taw qhia lub teeb; Lub teeb dawb yog lub zog qhia lub teeb ntawm lub actuator; Lub teeb liab yog lub teeb pom kev zoo kaw, uas yog nyob rau thaum lub valve kaw tag nrho lossis lub valve qhib; Lub teeb ntsuab yog lub teeb qhia qhib tag nrho, uas yog nyob rau thaum lub valve qhib tag nrho lossis lub valve kaw; Lub teeb daj yog txoj haujlwm tsis ua haujlwm lub tswb ceeb toom lub teeb, uas teeb thaum lub valve tsis tuaj yeem ncav cuag lub hom phiaj txoj haujlwm, thiab qhov tsis ua haujlwm tam sim ntawd yuav tshwm sim ntawm cov zaub.

5 Khawm

Tshwj tsis yog tias tau teev tseg, cov haujlwm tseem ceeb yog raws li hauv qab no:

nce:

Thaum nyob rau hauv qhov chaw, cov kev taw qhia ntawm actuator txav yog upward

Hloov mus rau yav dhau los cov ntawv qhia zaub mov xaiv down key): Thaum nyob rau hauv qhov chaw, khiav kev taw qhia ntawm tus actuator yog downward

Hloov mus rau cov ntawv qhia zaub mov tom ntej

Cov yuam sij ua haujlwm:

Nias thiab tuav rau 1 thib ob kom nkag mus rau cov ntawv qhia zaub mov interface Nias thiab tuav rau 1 thib ob kom paub meej

6 Installation thiab debugging

6.1 Nkag mus rau cov ntawv qhia zaub mov: nias thiab tuav lub luag haujlwm tseem ceeb rau 1 thib ob kom nkag mus rau cov ntawv qhia zaub mov interface

6.2 Stroke calibration method: Cov qauv no muab ob hom kev ntsuas tsis siv neeg stroke calibration thiab phau ntawv stroke calibration. 6.2.1 Tsis siv neeg stroke calibration method: tom qab nkag mus rau hauv cov ntawv qhia zaub mov, xaiv cov ntawv qhia zaub mov mob stroke, nias lub luag haujlwm kom nkag mus rau submenu, xaiv tsis siv neeg calibration, nkag mus rau cov ntawv qhia zaub mov tom ntej, xaiv xoom kev taw qhia, thiab tom qab ntawd nkag mus rau hauv cov kab mob stroke calibration. Tom qab lub calibration tiav, nws yuav cia li rov qab mus rau lub ntsiab interface.

6.2.2 Phau ntawv calibration txoj kev: Tom qab nkag mus rau hauv cov ntawv qhia zaub mov, xaiv cov kab mob stroke calibration ntawv qhia zaub mov, nias lub function key nkag mus rau submenu, xaiv phau ntawv calibration, nkag mus rau cov ntawv qhia zaub mov tom ntej, xaiv xoom kev taw qhia, thiab ces nkag mus rau lub zero point calibration interface, nias lub khawm nce thiab nqis kom khiav lub actuator mus rau qhov xav tau xoom point txoj hauj lwm, nias lub luag haujlwm tseem ceeb kom paub meej, nias lub khawm nce thiab nqis kom khiav lub actuator mus rau tag nrho txoj hauj lwm, nias thiab tuav lub luag haujlwm tseem ceeb rau 3 vib nas this. ua kom tiav cov calibration, thiab nws yuav cia li rov qab mus rau lub ntsiab interface tom qab calibration tiav.

Khoom Dimension

Khoom Parameters

DLA qauv

Qauv: DSL-Ex
