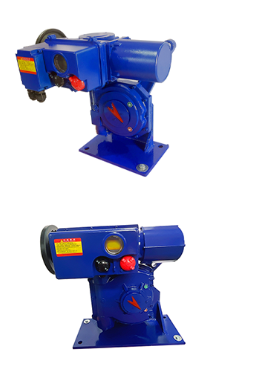

SD Quarter tig Electric Actuator
ZB + JS series hluav taws xob actuator yog cov khoom lag luam uas tsim los ntawm peb lub tuam txhab qhia txog kev siv tshuab siab heev. Cov hluav taws xob actuators tam sim no tsim muaj xws li peb hom kev hloov kho: ntau-tig, lub quarter-tig thiab linear-tig, chaw taws teeb tswj hom (ib hom), hom ob txoj hauj lwm (ntawm hom tawm) thiab ntau yam tshwj xeeb ntawm actuators. Tag nrho cov khoom tseem ceeb raug xa tuaj, kev ua cov khoom siv, kev tshuaj xyuas cov khoom, kev sib dhos ntawm lub tshuab tag nrho rau qhov kev xeem ua tau zoo yog txhua yam ua tiav raws li cov txheej txheem tsim khoom thiab cov kev xav tau, thiab cov khoom lag luam nruj me ntsis ua raws li lub teb chaws tus qauv.
ZB + JS series khoom muaj ntau yam thiab specifications, ua tiav functions, siab precision, lub teeb yuag, ruaj khov thiab txhim khu kev qha zoo, yooj yooj yim installation, yooj yim debugging thiab txij nkawm, thiab yuav tau lug siv nyob rau hauv nuclear chaw, fais fab mov, metallurgy, tshuaj lom neeg kev lag luam, roj av, cov khoom siv hauv tsev, lub teeb kev lag luam, thiab Tsis siv neeg tswj cov txheej txheem ntau lawm hauv ntau yam lag luam xws li kev kho dej.
Cov ntsiab lus sab hauv
SD series hluav taws xob actuator yog siv rau hauv cov qauv tsim ntawm cov qauv sib xyaw, kev sib xyaw ua ke, kev tsim qauv, cov khoom lag luam seriation nyob rau hauv qhov kev txiav txim siab ntau dua, ua rau cov khoom siv los ntawm cov tshuab, lub cev muaj zog, tswj Circuit Court, ua ke los tsim ntau yam sib txawv thiab cov lus qhia tshwj xeeb. , cov neeg siv hauv kev siv thiab kev saib xyuas ntawm qhov txo qis ntawm ntau yam ntawm cov khoom seem xav tau. Lub hauv paus ntawm cov khoom reducer txais lub zog siab aluminium alloy, cov qauv siv tshuab tsim tau yooj yim thiab compact, kev ntseeg siab yog siab, lub ntim me me, qhov hnyav yog lub teeb; Ntau qhov kev sib txuas tuaj yeem ntsia tau rau hauv txhua txoj haujlwm thiab kev taw qhia.
Tib neeg-tshuab interface kua siv lead ua zaub FRYSD series hluav taws xob actuator txais LCD kua siv lead ua zaub nrog backlight, uas qhia txog lub valve txoj hauj lwm, lub zog thiab kev ua haujlwm ntawm tus actuator hauv Suav lossis Askiv, cov lej, cov duab, thiab lwm yam, thiab tso tawm los ntawm LED ntsuas Lub siab qhib thiab kaw tag nrho txoj haujlwm ntawm lub valve tseem muaj zog penetrability txawm nyob rau hauv ib puag ncig hnyav, cia cov neeg siv pom cov xwm txheej ntawm tus actuator ntawm ib nrais muag.
On-site ua hauj lwm unit Lub on-site magnetic teb hloov tau hloov ntawm on-site thiab tej thaj chaw deb tswj lub xeev thaum cais tawm ntawm lub thawv hluav taws xob, thiab yooj yim tswj thiab teem lub actuator.
Cov yam ntxwv ntawm tus qauv
Muaj zog tiv thaiv muaj nuj nqi
Dynamic braking kuj yog kuv lub tuam txhab hluav taws xob actuators tus qauv teeb tsa. Nws tuaj yeem tiv thaiv lub cev muaj zog inertia loj dhau rau lub valve overshoot tshwm sim los ntawm lub zog nres siv hluav taws xob braking txoj kev, nrog qhov tseeb valve txoj hauj lwm sensor valve stroke, los ntawm kev tswj Circuit Court los tswj lub cev muaj zog ua haujlwm thiab qhov chaw raug. Tsis siv neeg theem peb-theem hluav taws xob actuator thaiv tsis tas yuav xav txog theem sequenc tswj Circuit Court los nrog tsis siv neeg theem tshawb pom muaj nuj nqi, tuaj yeem tiv thaiv actuator thiab valve vim kev puas tsuaj los ntawm theem txuas ntxiv.
Instantaneous rov qab tiv thaiv
Siv instantaneous reversal ncua sij hawm tswj technology, thaum lub actuator tau txais lub reverse lag luam tswj lub teeb liab, lub instantaneous reversal logic yuav cia li ncua qhov kev txiav txim los mus tiv thaiv lub load los ntawm kev puas tsuaj rau cov neeg kho tshuab kis mechanism.
Phase poob kev tiv thaiv
Lub sijhawm poob kev saib xyuas tsis tu ncua saib xyuas lub zog ua haujlwm. Thaum cov khoom siv hluav taws xob ua haujlwm tsis muaj theem, lub sijhawm tsis saib xyuas qhov system yuav txiav lub cev kom khiav mus ntxiv, thiab xa lub tswb hauv zos thiab nyob deb.
Kev tiv thaiv thermal ntawm lub cev muaj zog
Actuator lub cev muaj zog fittings tau nruab nrog kev tiv thaiv thermal hloov, qhov hloov pauv txuas nrog kev tswj xyuas Circuit Court, txawv txav thaum lub cev muaj zog overheating, sab hauv kub tshaj 130 degree, thermal hloov tau txiav tawm, tib lub sijhawm, nws yuav tswj lub zog hluav taws xob ntawm lub cev muaj zog, thiaj li tiv thaiv lub cev muaj zog thiab actuator, thaum lub cev muaj zog txias hloov rov qab, Circuit Court rov ua haujlwm.
Cov qauv
|
Qauv |
Rated torque Nm |
Qhov siab tshaj plaws torque Nm |
S/90 |
Flange mounted |
Rotating ceev rpm |
Lub zog Kw |
Pib tam sim no A |
Rated tam sim no A |
||
|
Flange code |
Lub taub hau mm |
Net nyhav Kg |
||||||||
|
QS-10 |
100 |
150 |
25 |
F07/F5 |
Φ20 |
7.2 |
1400 |
0.04 |
0.3 |
0.3 |
|
QA-25 |
250 |
400 |
30,60 |
F07/F10 |
Φ28 |
30 |
1400 |
0.065 |
0.4 |
0.3 |
|
QB-60 |
600 |
1000 |
30,60 |
F10 |
Φ35 |
48 |
1400 |
0.1 |
0.55 |
0.4 |
|
ZA+Z100 |
1000 |
1300 |
40,60 |
F12 |
Φ45 |
80 |
1400 |
0.1 |
0.55 |
0.4 |
|
ZB+JS160 |
1600 |
2000 |
28,40 |
F14 |
Φ60 |
113 |
1400 |
0.25 |
1.2 |
1.0 |
|
ZB+JS250 |
2500 |
3500 |
28 |
F16 |
Φ72 |
143 |
1400 |
0.65 |
1.7 |
1.4 |
|
40,50 |
1400 |
0.4 |
1.5 |
1.2 |
||||||
|
ZB+JS400 |
4000 |
6000 |
40 |
F16 |
Φ72 |
145 |
1400 |
0.65 |
1.7 |
1.4 |
|
50,65 |
1400 |
0.4 |
1.5 |
1.2 |
||||||
|
ZB+JS600 |
6000 |
7200 |
30,50 |
F16 |
Φ72 |
165 |
1400 |
0.8 |
1.8 |
1.5 |
|
75 |
1400 |
0.65 |
||||||||
|
105 |
1400 |
0.4 |
1.5 |
1.2 |
||||||
|
ZB+JS800 |
8000 |
10000 |
100 |
F25 |
Φ75 Φ100 |
185 |
1400 |
0.65 |
1.7 |
1.4 |
|
115 |
1400 |
|||||||||
|
165 |
1400 |
|||||||||
|
ZB+JS1000 |
10000 |
12000 |
115 |
F35 |
Φ75 |
205 |
1400 |
0.65 |
1.7 |
1.4 |
|
125 |
||||||||||
|
ZB+JS1200 |
12000 |
15000 |
115 |
F35 |
Φ75 |
205 |
1400 |
0.8 |
1.7 |
1.4 |
|
125 |
||||||||||
|
ZB+JS1500 |
15000 |
18000 |
125 |
F35 |
Φ75 |
205 |
1400 |
1.1 |
1.9 |
1.6 |
|
ZB+JS1800 |
18000 |
16000 |
125 |
F25 |
Φ75 |
205 |
1400 |
1.1 |
1.9 |
1.6 |
|
ZB+JS2000 |
20000 |
25000 |
125 |
F35 |
Φ100 |
240 |
1400 |
1.1 |
1.9 |
1.6 |
|
ZB+JS2500 |
25000 |
30000 |
125 |
F40 |
Φ140 |
280 |
1400 |
1.5 |
2.0 |
1.7 |
|
ZB+JS3000 |
30000 |
35000 |
125 |
F40 |
Φ140 |
280 |
1400 |
2.2 |
2.8 |
2.2 |
|
ZC+JS3000 |
30000 |
40000 |
125 |
F40 |
Φ180 |
280 |
1400 |
2.2 |
2.8 |
2.2 |
|
ZC+JS4000 |
40000 |
60000 |
125 |
F40 |
Φ180 |
350 |
1400 |
3.0 |
3.5 |
2.5 |
Qhov zoo
FRY yog lub tuam txhab tshwj xeeb uas tau tsim hluav taws xob actuators thiab cov khoom lag luam uas tsav cov khoom lag luam txij li xyoo 2014, FRY tsim cov khoom lag luam uas tuaj yeem siv rau hauv ntau qhov chaw, xws li kev kho dej xws li dej thiab dej phwj tuaj rau kev tsim hluav taws xob thiab petrochemical teb, thiab muag lawv rau cov neeg siv khoom thoob plaws ntiaj teb.
FRY muaj 3Q lub tswv yim los ua kom tiav cov neeg siv khoom xav tau.
Kev xa khoom sai
FRY hwm hnub xa khoom thiab tshaj tawm lub sijhawm xa khoom sai tshaj plaws.
Kev pabcuam ceev
FRY ua haujlwm cov koom haum pabcuam thiab cov tshuab ua haujlwm kom sai li sai tau yog tias muaj teeb meem tshwm sim cuam tshuam nrog peb cov khoom.
Teb ceev
FRY ua haujlwm los muab peb cov neeg siv khoom muaj kev ntseeg siab los ntawm kev teb rau cov neeg siv khoom thov kom sai li sai tau lawv tau txais.
Keeb kwm
2014 Peb lub tuam txhab tau sau npe nyob rau hauv ib lub tsev xauj tsev nyob rau tib lub sij hawm, lub tuam txhab lag luam txawv teb chaws tau tsim.
2015 Lub chaw ua haujlwm tau hloov mus rau: Zhongbei Lub Nroog Lub Zog Txuag Lub Tsev Xyoo no peb lub tuam txhab tau ua tiav 9000 daim ntawv pov thawj CE thiab lwm cov ntawv pov thawj tsim nyog, thiab lub teb chaws xa tawm tseem ceeb yog South East Asia, Parkistan Nyab Laj, Singapore thiab Thaib teb.
2016 Cov lag luam txawv teb chaws maj mam nce exporting rau South America Chile, Paraguay, Russia thiab lwm lub teb chaws nyob rau tib lub sij hawm nyob rau hauv lub dhau los.
2020 Peb lub tuam txhab nws tus kheej tsim hluav taws xob actuator xuab zeb thov rau cov qauv siv hluav taws xob patents thiab pom daim ntawv pov thawj patent. Kev lag luam hauv tsev thiab txawv teb chaws tau loj hlob sai, thiab lub tuam tsev lag luam hauv tsev tau raug xaiv los ua tus xa khoom ruaj khov rau cov lag luam loj xws li Sinoma.Red Lion thiab Huaxin thiab lwm yam.Lub tuam txhab lag luam txawv teb chaws tau raug xaiv los ua tus xa khoom ruaj khov rau cov lag luam loj xws li xws li Sinoma.Red Lion thiab Huaxin thiab lwm yam.Lub tuam txhab lag luam txawv teb chaws tau ua cov haujlwm tseem ceeb xws li cov dej phwj loj loj.
2021 Cov khoom muag txhua xyoo ntawm peb cov tuam txhab hluav taws xob actuators tau mus txog 2, 000units Tib lub sijhawm, cov kev tsim nyog xa tawm hauv qab no tau raug tswj hwm: ROHS SILATEX thiab lwm yam, ntawm lawv, cov khoom pov thawj tawg kuj tau dhau daim ntawv pov thawj ntawm National Institute of Explosion-proofing.Cov khoom tseem ceeb kuj tau dhau qhov kev tso cai zoo.
