QT Intelligent Series

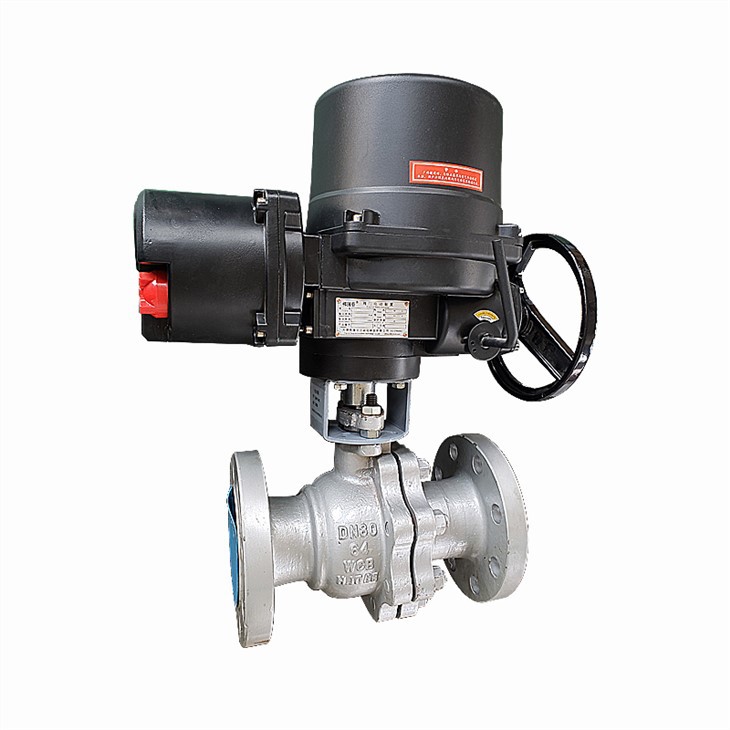

Intelligent quarter-tig hluav taws xob valve actuator
QT series yog cov khoom ntse ntse tom ntej uas tuaj yeem ua haujlwm zoo rau kev tsim cov tshuab tswj. Lub quarter-tig actuator tuaj yeem siv tau rau npauj npaim, pob li qub, dampers, thiab lwm yam.
Cov ntsiab lus tseem ceeb ntawm QE series
• Cov cuab yeej tuaj yeem teeb tsa thiab ua haujlwm siv lub chaw taws teeb tswj lossis wireless ntaus ntawv yam tsis tau qhib lub hau
• tshem tawm tag nrho cov dej los nag
nkag mus los ntawm kev txais yuav tsis nkag mus hom hloov
• Kev tuav tus kheej ua haujlwm thaum lub zog hloov pauv ua haujlwm
• Waterproof muaj nuj nqi txaus siab IP68 (8m, 72 teev) (yeem)
• Kev tawg-pov thawj muaj nuj nqi txaus siab Exd IIB T4 (yeem)
• Loj LCD zaub, cov ntaub ntawv teev muaj nuj nqi
• Txhawb nqa 2-wire fieldbus kev sib txuas lus
(Profibus-DP, FF, HART, Modbus thiab lwm yam / xaiv tau)
• Hluav taws kub retarding (yeem)
- FR txheej
- Kev sim siv UL 1709: 2005
(Certification Agency: Lloyd's Register of Shipping)
Khoom qauv
Integration modulating tswj lub thawv
Lub thawv tswj sab nraud yog ntxiv rau "hom pib". Nws koom ua ke reversing starters, lub cev muaj zog thiab kev tiv thaiv cov ntsiab lus, logic ntsiab, nyob rau hauv / tso zis unit, lub zos / chaw taws teeb tswj thiab on / shut / off valve lub zos ua hauj lwm knob nyob rau hauv ib tug tswj lub thawv.
Handwheel
Lub handwheel ncaj qha tsav cov zis ncej rau kev sib hloov, rau kev debugging thiab kev ua haujlwm kub ntxhov.
Tes/Auto hloov
Los ntawm kev ua haujlwm ntawm tes / pib qib, phau ntawv tsav yog koom nrog.
Energization ntawm lub cev muaj zog tuaj yeem rov ua haujlwm lub zog. (Lub tes / nws pib lever yog lockable nyob rau hauv thiaj li yuav tiv thaiv los ntawm kev ua yuam kev.)
Lub cev muaj zog
Lub cev muaj zog nrog tshwj xeeb siab torque qis inertia tuaj yeem dismantled ntawm nws tus kheej. Nws muaj lub thermal tiv thaiv sab hauv los tiv thaiv kev puas tsuaj los ntawm overheating ntawm lub cev muaj zog - rwb thaiv tsev chav F
Cam thiab txwv hloov
Tighten nrog ob screws thiab yooj yim teeb tsa. Txhua lub cam tuaj yeem teem caij sib cais. Thaum teeb tsa, txhua lub cam yuav nyob ntawm txoj haujlwm mus ib txhis.
Terminal thaiv
Lub davhlau ya nyob twg txaus rau cov neeg siv khoom yooj yim (Max 22 ntsiab lus). Pov thawj kev ntseeg siab thiab kev sib txuas ntawm cov hlua khi
Qhov taw qhia qhov chaw
Qhov taw qhia txhua yam tuaj yeem txuas ntxiv qhia txog qib ntawm lub valve qhib, uas muaj ntau theem iav nrog cov iav kho kom haum rau ntau qhov kev hloov pauv.
Valve customization
Npauj Npaim Valve

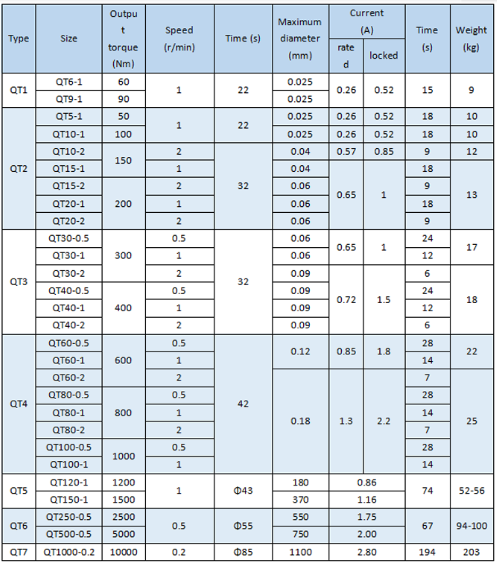

Txheem Specification
Cov qauv xaiv tau
Lus Cim: Thaum cov zis ncej ceev yog 2r / min, cov zis ncej ntawm cov khoom tsis yog tus kheej-locking.
Thaum lub valve muaj qhov kev xav tau ntawm tus kheej, nws yuav tsum tau sau tseg
