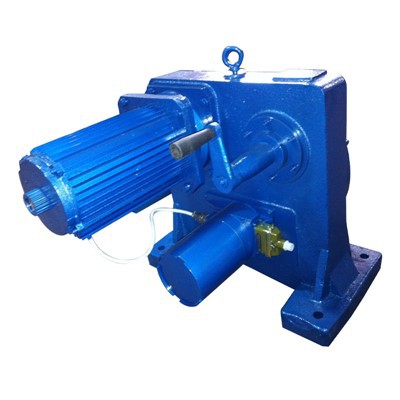

Fais Actuator + ZKJ Series
Txheej txheem cej luam
ZKJ hluav taws xob actuator, ib chav ua haujlwm hauv DDZ hom hluav taws xob hauv tsev ua ke, lees txais cov teeb liab los ntawm chav tswj hwm (lossis khoos phis tawj) thiab tswj cov actuator kom ua tiav cov haujlwm tswj hwm. Nws yog dav siv rau cov chaw nres tsheb fais fab tshuaj, roj av, metallurgy, khoom siv hauv tsev, khoom siv hluav taws xob, kev kho dej thiab lwm yam lag luam.
ZKJ hom hluav taws xob actuator nrog ntau yam hluav taws xob Manipulators tuaj yeem ua tiav kev hloov pauv tsis muaj kev cuam tshuam ntawm "Manual-Automatic ntawm kev tswj hwm kev tswj hwm rau cov chaw taws teeb tswj kev ua haujlwm ntawm cov khoom kom tswj tau raws sijhawm.
Tag nrho cov actuator txoj hauj lwm transmitters uas tsim los ntawm peb lub tuam txhab txais yuav qhov tseeb pob khoom sensory yog siv rau qhov tseeb circuits ntawm txawv teb chaws tuam txhab uas muag, integrating hwj chim transformer, rectification, voltage stabilization, lub hwj chim amplification thiab tsis tu ncua tam sim no, fabricated module (M) ua rau kev ntseeg tau thiab stability. ntawm tus actuator siab dua, thiaj li ua kom lub kaw lus ruaj ntseg thiab txhim khu kev qha.
Khoom nta
1.The product has reasonable structure, strict production technology and quality management, so that the high reliability of the actuator is ensured, with Mean Time Between Failure (MTBF) >25000 teev.
2.Txoj hauj lwm transmitter switching circuit muaj siab induced voltage kuj, thiab nws cov kev ua tau zoo tshaj cov khoom zoo sib xws hauv tsev thiab txawv teb chaws.
3.Txoj kev tswj cov cams tuaj yeem hloov kho ntawm nws tus kheej yam tsis muaj kev cuam tshuam, kom qhov kev hloov kho tau yooj yim thiab yooj yim.
4.The AC ib-theem lub cev muaj zog yog siv nyob rau hauv lub siab torque actuator kom yooj yim rau kev siv cov kev tswj tsis siv neeg.
5.Lub cev muaj zog nres log ua los ntawm cov ntaub ntawv tshwj xeeb muaj cov yam ntxwv ntawm kev txhim khu kev qha braking, lub neej ntev kev pab cuam, thiab superior rau cov khoom zoo sib xws.
Tchnical Performance

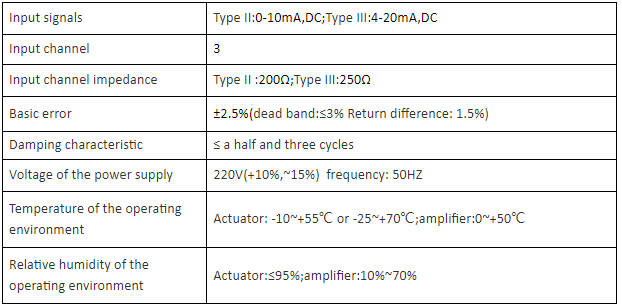

Qhov tseem ceeb parameter
|
DKJ,SKJ,ZKJ yog lub ntsiab lus ntawm kev sib hloov lub kaum sab xis uas qhia cov yam ntxwv sib txawv thiab cov qauv kev teeb tsa ua ke rau cov ntawv hauv qab no |
|
|
1 |
M hom txhais tau tias qhib-tawm module actuation |
|
2 |
D hom,DY-JT hom txhais tau tias hluav taws xob (regulating) module actuation |
|
3 |
Z hom txhais tau tias ncaj qha mounted actuation; ZM hom txhais tau tias on-off direct-mounted; ZD hom txhais tau hais tias hluav taws xob ncaj qha-mounted |
|
4 |
B hom txhais tau tias tawg pov thawj actuation; BM hom txhais tau tias on-otff tawg pov thawj; BD hom txhais tau hais tias hluav taws xob tawg pov thawj |
|
5 |
F hom txhais tau tias hluav taws xob (regulating) module actuation |
|
6 |
Y hom txhais tau tias electronic((regulating)module actuation |
|
7 |
EX hom txhais tau hais tias tawg pov thawj lossis cov duab digital modulating actuation |
|
8 |
CX hom txhais tau hais tias rov qab teeb liab DC 4-20mA nrog hluav taws xob txwv hloov mus ncig |
|
9 |
Peb lub tuam txhab tuaj yeem kho raws li cov neeg siv khoom xav tau |

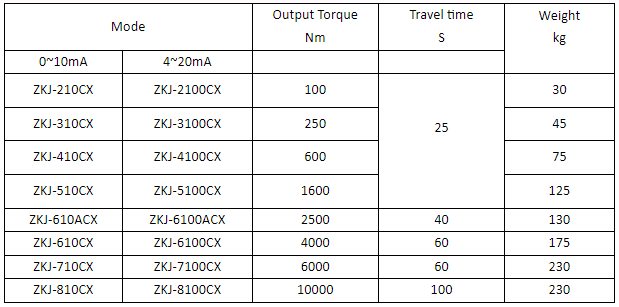

Qauv Specifications
Ko taw-phaj Mounted Customization
Xim tuaj yeem kho tau
Daim ntawv thov nyob
DKJ-M on-off hom hluav taws xob actuator
|
Hom |
DKJ-210M 2100M |
DKJ-310M 3100M |
DKJ-410M 4100M |
DKJ-510M 5100M |
|
Tawm tawm torque (Nm) |
100 |
250 |
600 |
1600 |
|
Sijhawm (S) |
25 |
|||
|
Qhov hnyav (Kg) |
30 |
45 |
75 |
125 |
|
Hom |
DKJ-610M 6100M |
DKJ-610M 6100M |
DKJ-710M 710M |
DKJ-810M 8100M |
|
Tawm tawm torque (Nm) |
2500 |
4000 |
6000 |
10000 |
|
Sijhawm (S) |
40 |
60 |
60 |
100 |
|
Qhov hnyav (Kg) |
130 |
175 |
230 |
|
Tag nrho cov qauv hauv qab no ntawm DKJ-D (DY-J) hluav taws xob lub quarter-tig hluav taws xob actuator yog sawv cev hauv DY-J
|
Hom |
DY-J21 |
DY-J31 |
DY-J41 |
DY-J51 |
DY-J61A |
DY-J61 |
DY-J71 |
DY-J81 |
|
Torque (Nm) |
100 |
250 |
600 |
1600 |
2500 |
4000 |
6000 |
10000 |
|
Sijhawm (S) |
25 |
40 |
60 |
90 |
90 |
|||
DKJ-B tawg pov thawj hom hluav taws xob actuator
|
Hom |
DY-J21 |
DY-J31 |
DY-J41 |
DY-J51 |
DY-J61A |
DY-J61 |
DY-J71 |
DY-J81 |
|
Torque (Nm) |
100 |
250 |
600 |
1600 |
2500 |
4000 |
6000 |
10000 |
|
Sijhawm (S) |
25 |
40 |
60 |
90 |
90 |
|||

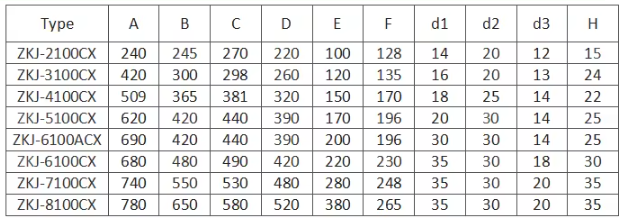

Installation qhov ntev
