Direct Mounted Npauj Npaim Valve Electric Actuator

Direct Mounted Npauj Npaim Valve Electric Actuator
Paub meej:
1.Input signal: Hom m 4-20mA DC
2.Input channel: 3
3.Input channel impedance: Hom II 250Ω
4.Output teeb liab: 4-20mA Dc, on-load muaj peev xwm Tsawg dua los yog sib npaug rau 750Ω
5.Limit ntawm qhov yuam kev yooj yim: ± 2.5%
6. Thaj chaw tuag: 0.5%-1.5% kho tau
7. Damping yam ntxwv: Tsawg dua los yog sib npaug rau 3 ib nrab voj voog
8. Rov qab sib txawv: Tsawg dua lossis sib npaug li 1.5%
9. Fais fab mov voltage: 220V (± 10%, ± 15%) zaus 50Hz
1 0. Kev pab cuam ib puag ncig kub: Actuator: -10 ~ +55 degree lossis -25 ~ +70 degree ; amplifier. 0 ~ +50 degree
11. Tus txheeb ze av noo ntawm ib puag ncig kev pabcuam: Actuator: Tsawg dua lossis sib npaug li 85% (tsis muaj cov tshuaj corrosive hauv huab cua ambient)
Xa kev nug
Hauj lwm lawm
Xa kev nug

Hluav taws xob Actuator

Yooj yim thiab pheej yig / ruaj khov kev ua haujlwm / kev hloov kho ntse

product-502-346



Khoom zoo

Kev hloov kho ntse

Kev kho qhov system phau ntawv-tsis siv neeg txhawj xeeb-tsis hloov pauv

product-403-313

Ntau yam xwm txheej

Muaj feem xyuam rau kev tsim hluav taws xob, metallurgy, roj av, tshuaj lom neeg kev lag luam, kev lag luam teeb, thiab lwm yam.

product-392-292

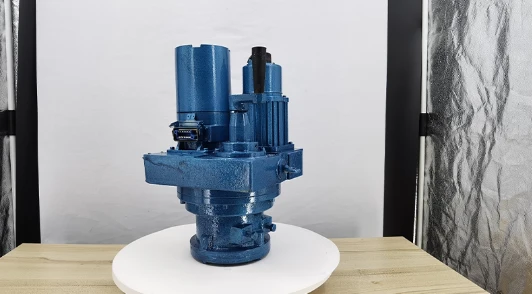

Cov khoom muaj pes tsawg leeg

product-532-294



Lub cev muaj zog

Cov qauv yooj yim thiab txhim khu kev qha ua haujlwm

product-210-220

Handwheel

Kev tuav haujlwm, yooj yim rau kev khiav lag luam

product-221-216





Kev sib txuas

Txhim khu kev sib txuas thiab yooj yim debugging

product-215-222



Qhov ntev

Cov kab du thiab ntim tau zoo

product-221-208





technical parameter

product-496-211

Input teeb liab

4 ~ 20mADC

0 ~ 10mADC

1 ~ 5VDC

0 ~ 10VDC



Limit hloov

Kev tswj hwm kev tswj hwm, Mechanical limit, Hluav taws xob txwv



Qhov hluav taws xob

220 V 50HZ



Temp.

-25 degree ~ +75 degree



Daim ntawv thov

product-532-299

product-530-298

product-532-297

product-531-302
