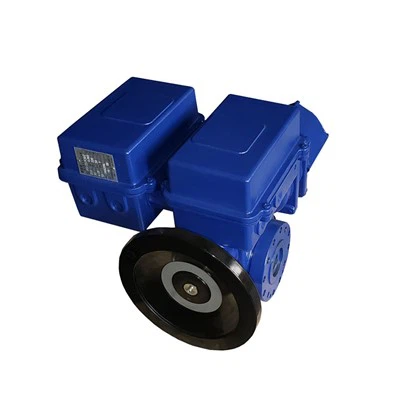

FAIS FAIS FAIS FAIS Pob VALVE Actuator
Khoom nta
• Q hom hluav taws xob valve actuat yog haum rau npauj npaim li qub, pob li qub thiab lwm yam. Cov actuatator no tau nthuav tawm los ntawm me me, lub teeb yuag, muaj txiaj ntsig zoo, muaj peev xwm tiv thaiv siab, cov suab tsis tshua muaj kev tiv thaiv, cov suab tsis tshua muaj siab thiab. Ob qho kev ua haujlwm ntawm lub xaib thiab chaw taws kev tswj tau tuaj yeem nqa tawm. Yog li lawv tau raug thov rau hauv kev lag luam roj av thiab kev lag luam siv tshuaj, hluav taws xob, kho cov dej thiab kev lag luam qoob loo.
• FREA tswj cov qauv tsim, tsim tawm thiab muab cov kev ua zoo thiab cov kev pab cuam cuam tshuam nrog lub ntsuas tshuab valation.
• Nrog rau peb ntau xyoo kev paub dhau los hauv kev ua lag luam, peb tau tsim cov kev ua yeeb yam hluav taws xob, uas muaj kev sib xyaw, txhim khu kev qha, txhim khu kev ua ke kom zoo.
• Peb ib txwm npaj tau muab peb QU koob tshuaj no thiab cov khoom siv tau ntxiv rau cov kev pabcuam zoo.
• Kev tsim kho cov tshuaj sib haum thiab muaj zog heev.
• Ntau yam sib txawv ntawm cov kab sib txawv (los ntawm min 50nm rau max 5000nm).
• Ua ib qho nyuaj anodized txhuas vaj tse sab hauv thiab sab nraud nrog cov xim kub sab nraud rau kev siv tiv thaiv ib puag ncig kev lag luam.
• Cov ntaub ntawv uas muaj cov ntsaws ruaj ruaj
• LSO55211 tus qauv.
• Cov tsav tsheb tshem tawm cov tshuab yooj yim thiab mounting.
• Muab tus kheej lock tau muab los ntawm ob chav ntawm cov cua iav sab nraud (tsis tas yuav tsum tau muaj tus nres.
• Nws cia li cim tau thiab kho cov theem. Tsis siv neeg theem tsis ua hauj lwm tiv thaiv tiv thaiv cov cuab yeej siv hluav taws xob.
• Txhim khu kev qhaorical tshuab tsom iav tsom cov txheej txheem muab kev nyab xeeb hauv kev ua haujlwm zoo.
• Cov qhov rai loj loj thiab qhov ntsuas tau muab txoj haujlwm zoo dua los ntawm kev deb.
• Tus lej ntawm txoj haujlwm hauv zos tswj cov kev xaiv los muab kev ua haujlwm yooj yim thiab kev ua haujlwm.
Khoom qauv
1 Kev tswj kev sib xyaw Chav Tsis-Sunk Hloov khawm tau txais yuav los ua kom tiav kev ua haujlwm waterproof. Cov built-in Circuit Court Board muaj lub zog ntseeg tau kev sib cais los ntawm kev cuam tshuam sab nraud los ntawm kev cais kho kho qhov muag. Yog tias muaj qhov dhau-torque hloov induction, rau kev nyab xeeb ntawm lub cev muaj zog thiab valve, tus actuator yuav tsis hnov los ntawm lwm cov neeg ua haujlwm nkag mus hauv tsev (rov pib dua) khawm.
2 xaiv tswj hom
Cov kev xaiv hloov "tej thaj chaw deb" - "nres" - "chaw ua haujlwm hauv zos tuaj yeem siv los tswj cov chaw taws teeb) lossis kev tswj chaw taws teeb) lossis hom nres.
3 Lub Lag Luam Hauv Nroog Hluav Taws Xob
Lub operating khawm "Qhib" - "Kaw" ntsia rau ntawm lub chaw ua haujlwm hauv zos tuaj yeem siv los qhib lossis kaw hauv zos.
4 lub cev muaj zog
Lub pob valve lub cev muaj zog uas tuaj yeem rho tawm ntawm nws tus kheej muaj cov yam ntxwv ntawm kev pib pib lub zog thiab me me inertia. Tus nas ncuav induction lub cev muaj kuab nrog embedded ntsuas sov. Lub built-inermostat yog ntes tau qhov kub thiab txias kom tiv thaiv tau daim ntawv tsav tsheb.
5 kev ua haujlwm hluav taws xob
Lub cev muaj zog ua lub zog hluav taws xob los ntawm thawj-theem spur iav khub kom tig los ntawm tooj liab cab iav ua ke nrog nws. Qhov qauv txo qis no muaj kev ntsuas ntsuas tus kheej, thaum lub cev muaj zog nres, lub valve yuav raug kaw hauv txoj haujlwm.
6 Quav Stroke Tswj, Torque Tswj thiab Qhib Kev Ntsuas
Qoj stroke stroke nws ad saws lub cam mechaism, lub cam ncej yog feem kawg ntawm cam ncej yog nruab qhov kev sib tw nrog tus xov tooj los qhia lub valve. Torque tswj lub zog hluav taws xob yog muaj ib pawg npauj npaim ntawm cov cab yog hloov mus rau hauv kev sib hloov ntawm lub torque ncej los ntawm cov qauv pin thiab pinion. Lub cam yog ntsia rau ntawm lub torque ncej, thiab microswitch yog muab sib raug zoo hauv kev qhib thiab kaw.
7 Kev Lag Luam Kev Lag Luam
Thaum lub Handpwheel yog muab, phau ntawv cab drives ntawm iav ceev, thiab lub ntiaj teb iav tsheb ciav hlau mus rau kev tsav cov zis mus tig. Vim li no phau ntawv thiab hluav taws xob ua haujlwm hloov dua siab tshiab ntawm cov neeg ua tiav tiav ntawm lub luag haujlwm hloov ntawm lub nplhaib zoo li qub. Tsis muaj clutch, thiab tsis tas yuav hloov tus kov kom ua tiav hloov kho tsis siv neeg hloov.
8 Lub thawv davhlau ya nyob twg
Cov neeg ywj pheej muab cov kab ke uas muaj peev xwm sib npaug ntawm cov hluav taws xob kev ncaj ncees thaum ua yeeb yam ntawm cov hluav taws xob, thiab tib lub sijhawm ua tau raws li cov khoom lag luam tawg.
9 kev txwv txhua yam
Muaj ib qho kev txwv ntawm cov ntsia hlau rau txhua qhov kev xaiv qhib thiab kaw. Ib qho tshwj xeeb sib khi gasket yog ntsia rau ntawm qhov txwv ntawm cov ntsia hlau kom ntseeg tau tias kev sib khi tau zoo ntawm ntu no.
Tus neeg sib dhos
Khoom Accessories
Khoom Zaub
Txheem Cov Qauv
|
Kev Tiv Thaiv Qib |
Txheem IP65 \/ IP67 Tshwj Xeeb IP68 |
|
Kev pab fais fab |
Peb-theem ac380v ---460 v 50 \/ 60Hz ib leeg-theem: AC110v-AC23V AC24V 50 \/ 60HZ |
|
Lub Luag Haujlwm Lub voj voog (tawm) |
Luv luv 10 feeb (tshwj xeeb ntawm 30 feeb) |
|
Lub Luag Haujlwm Lub voj voog (modulating) |
Luv luv 10 feeb (tshwj xeeb ntawm 30 feeb) |
|
Lub cav |
Nab Me Cage Induction Tsav |
|
Txwv tsis pub hloov |
2 Txhua qhov qhib thiab kaw (SPDT 250VAC \/ 16A ntaus nqi) |
|
Torque hloov |
1 Txhua qhov qhib thiab kaw (SPDT 250VAC \/ 16A ntaus nqi) |
|
Jam tiv thaiv |
Tsim-hauv kev tiv thaiv zoo nkauj |
|
Ncig saib lub kaum sab xis |
90 degree |
|
Txoj Haujlwm Taw Qhia |
Nruam tshuab txhais tau hais nrog xub |
|
Yus tus kheej |
Muab los ntawm ob npaug ntawm cov cua ntsawj (tsis muaj tus nres) |
|
Neeg nres tsheb kho txhua yam |
1 Txhua tus rau txhua qhov kev mus ncig kawg (qhib thiab kaw), sab nraud & kho tau |
|
Thaj kub cua sov |
Txheem: {-20-+60 degree xaiv: -40-+80} degree |
|
Ambient noo |
90% rh max (tsis yog-condensing) |
|
Tawg tawg-ua pov thawj |
Exdiibt4 iCex Atex Customized ntawv pov thawj yuav muab tau |
|
Yam ua hauj lwm |
LCD Suav \/ Askiv zaub qhov rai thiab kev ua haujlwm hauv zej zog Cais FAIS FEEM Qhab Pom Kev Qhia Txog thiab Phase Disconnection Kev Tiv Thaiv Chaw teeb tsa thiab tswj Txhaum tus kheej-kuaj mob thev naus laus zis Modbus, Profidbus DP, Hart |
|
Cim hom |
A: Lub chaw taws teeb caij ntuj sov qhuav tiv toj, teeb liab mem mem quav (inching). B: Lub chaw taws teeb hla qhuav hu, teeb liab cov mem tes ntev (tuav). C: Nquag DC24V teeb liab. D: nquag AC220V teeb liab. E: Cov chaw taws teeb DC 4-20 ma teeb liab. |
|
Kev taw qhia cov lus qhia |
A: Qhib, kaw, nres cov cim (passive flumain). B: Txhaum teeb liab (passive qhuav hu). C: Valve-DC 4-20 ma, dc {{v, dc 0-10 v) D: Kev tswj cov chaw taws teeb hluav taws xob (Passive Farving Hu) |
Cov ntaub ntawv txheej txheem
|
Tus qauv |
Torque (N·m) |
Max. rev paj qhov dav (hli) |
Siv tes feem tsawg |
Khoom uas tsim tau lawm hov ceev (r \/ min) |
AC380V |
AC220V |
Qho hnyav Kg |
|||
|
Hwjchim (Kw) |
Niaj hnub (A) |
Hwjchim (Kw) |
Niaj hnub (A) |
Ncaj qha qub |
Ko Taw-Phaj qub |
|||||
|
Fry-Q -005 |
50 |
19 |
60:1 |
0.5 |
0.045 |
0.35 |
0.06 |
0.7 |
8.5 |
16 |
|
Fry-Q -010 |
100 |
19 |
60:1 |
0.5 |
0.06 |
0.5 |
0.09 |
1.0 |
9 |
17 |
|
Fry-Q -015 |
100 |
28 |
90:1 |
0.5 |
0.06 |
0.5 |
0.09 |
1.0 |
17 |
25 |
|
Fry-Q -020 |
200 |
28 |
90:1 |
0.5 |
0.09 |
0.7 |
0.12 |
1.5 |
17 |
25 |
|
Fry-Q -030 |
300 |
28 |
90:1 |
0.5 |
0.12 |
0.8 |
0.15 |
2.0 |
17 |
25 |
|
Fry-Q -040 |
400 |
28 |
90:1 |
0.5 |
0.15 |
0.9 |
0.18 |
2.5 |
18 |
26 |
|
Fry-Q -060 |
600 |
38 |
87:1 |
0.5 |
0.18 |
1.0 |
0.25 |
3.0 |
25 |
41 |
|
Fry-Q -090 |
900 |
38 |
87:1 |
0.5 |
0.25 |
1.5 |
0.37 |
4.0 |
26 |
50 |
|
Fry-Q -120 |
1200 |
38 |
87:1 |
0.5 |
0.25 |
1.5 |
0.37 |
4.0 |
27 |
51 |
|
Fry-Q -180 |
1800 |
38 |
87:1 |
0.5 |
0.37 |
2.0 |
0.55 |
5.0 |
28 |
67 |
|
Fry-Q -300 |
3000 |
55 |
348:1 |
0.5 |
0.37 |
2.0 |
0.55 |
5.0 |
39 |
77 |
|
Fry-Q -400 |
4000 |
55 |
348:1 |
0.5 |
0.55 |
3.0 |
0.75 |
7.0 |
40 |
78 |
|
Fry-Q -500 |
5000 |
55 |
348:1 |
0.5 |
0.55 |
3.0 |
0.75 |
7.0 |
41 |
82 |
Nco tseg:
1. Nyob rau hauv lub ntsuas hluav taws xob, qhov piv ntawm lub jam tam sim no mus rau qhov kev ntsuas tam sim no ntawm lub cev muaj zog yog 7, thiab lub cev muaj zog yog}}}% ntawm lub lav tus nqi
2
Qho loj
|
Tus qauv |
B1 |
B2 |
H |
H1 |
H2 |
L |
L1 |
D |
|
Fry-Q -005} \/ 015 |
68 |
114 |
156 |
270 |
73 |
250 |
157 |
140 |
|
Fry-Q -020 \/ 040 |
91 |
157 |
191 |
273 |
103 |
332 |
208 |
160 |
|
Fry-q -060 \/ 180 |
143 |
203 |
227 |
309 |
126 |
424 |
232 |
250 |
|
Fry-Q -300 \/ 800 |
143 |
203 |
291 |
373 |
190 |
424 |
232 |
250 |
Kev sib txuas qhov ntev
|
Tus qauv |
B1 |
B2 |
H |
H1 |
H2 |
L |
L1 |
D |
|
Fry-Q -005} \/ 015 |
68 |
114 |
156 |
270 |
73 |
250 |
157 |
140 |
|
Fry-Q -020 \/ 040 |
91 |
157 |
191 |
273 |
103 |
332 |
208 |
160 |
|
Fry-q -060 \/ 180 |
143 |
203 |
227 |
309 |
126 |
424 |
232 |
250 |
|
Fry-Q -300 \/ 800 |
143 |
203 |
291 |
373 |
190 |
424 |
232 |
250 |
Kev sib txuas qhov ntev
|
Tus qauv |
Flange Qauv |
d1 |
d2 |
d3 |
n-d4 |
D7 |
H |
h |
h1 |
||
|
Tshwj tseg |
Max. |
||||||||||
|
Fry-Q -005 |
Fb1 |
77 |
57 |
4-M6 |
12.7 |
12.7 |
35 |
||||
|
Fry-Q -010 |
Fb1 |
77 |
57 |
4-M6 |
15.9 |
15.9 |
35 |
3 |
2 |
||
|
F05 |
65 |
35 |
50 |
4-M6 |
8 |
18 |
35 |
||||
|
Fry-Q -015 Fry-Q -020 |
Fb2 |
92 |
70 |
4-M8 |
19 |
19 |
42 |
||||
|
F07 |
90 |
55 |
70 |
4-M8 |
12 |
28 |
42 |
3 |
2 |
||
|
Fry-Q -030 Fry-Q -040 |
Fb3 |
115 |
89 |
4-M12 |
22.2 |
22.2 |
42 |
||||
|
F10 |
125 |
70 |
102 |
4-M10 |
12 |
28 |
42 |
3 |
2 |
||
|
Fry-Q -060 |
Fb3 |
115 |
89 |
4-M12 |
28.6 |
28.6 |
50 |
||||
|
F10 |
125 |
70 |
102 |
4-M10 |
15 |
38 |
50 |
3 |
2 |
||
|
Fry-Q -120 |
Fb4 |
140 |
108 |
4-M12 |
31.7 |
31.7 |
50 |
||||
|
F12 |
150 |
85 |
125 |
4-M12 |
15 |
38 |
50 |
3 |
2 |
||
|
Fry-Q -120 Fry-Q -180 |
Fb5 |
197 |
159 |
4-M16 |
33.3 |
33.3 |
60 |
||||
|
F14 |
175 |
100 |
140 |
4-M16 |
20 |
38 |
60 |
3 |
3 |
||
|
Fry-Q -180 Fry-Q -300 Fry-Q -500 |
Fb5 |
197 |
159 |
4-M16 |
41.3 |
41.3 |
90 |
||||
|
F16 |
210 |
130 |
165 |
4-M20 |
20 |
60 |
90 |
3 |
3 |
||

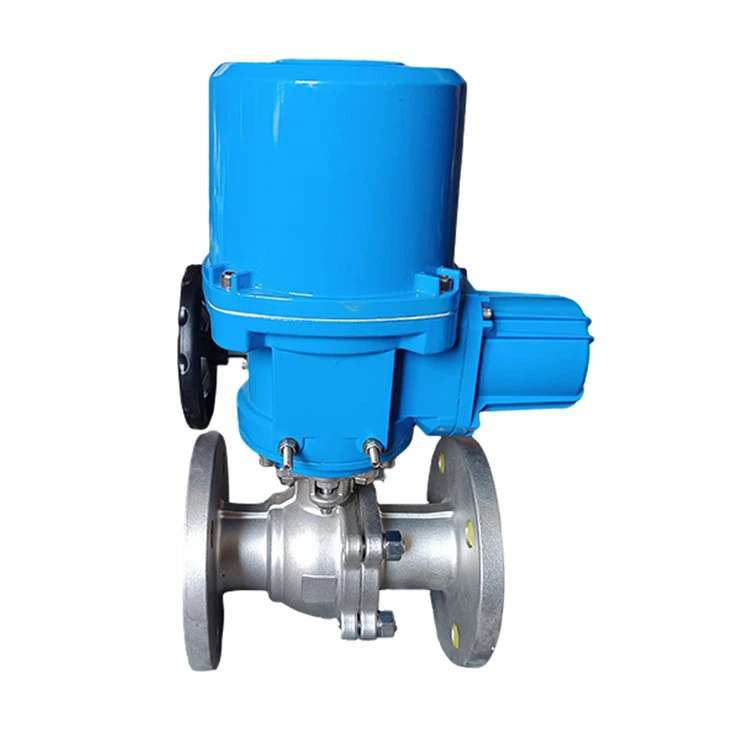

Tsev tsim khoom
