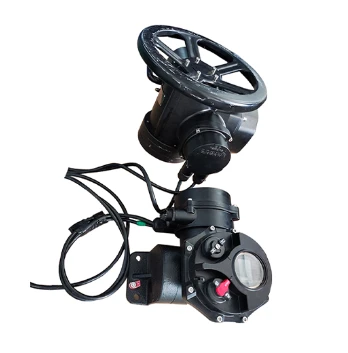

Split Electric Actuator
Kev txawj ntse cais hluav taws xob actuator, hu ua Z-hom hluav taws xob actuator, yog lub tshuab tsav tsheb rau lub valve qhib, kaw lossis hloov kho. Z-hom hluav taws xob installation yog tsim rau lub rooj vag li qub, lub ntiaj teb li qub, diaphragm li qub, plunger li qub, throttle li qub, lub qhov rooj dej, thiab lwm yam. Nws tuaj yeem siv rau kev nce qia li qub thiab zais qia li qub. Cov khoom siv hluav taws xob no muaj cov yam ntxwv ntawm kev ua haujlwm tag nrho, txhim khu kev qha, kev tswj hwm qib siab, qhov me me, lub teeb yuag, yooj yim siv thiab tu. Lub valve tuaj yeem tswj tau remotely, centrally thiab txiav.
Piv nrog rau cov actuators ib txwm muaj, qhov sib cais-hom actuator tsis muaj kev hloov pauv hauv nws qhov loj me thiab cov kab hluav taws xob, thiab yog qhov sib hloov tau zoo heev; los ntawm kev kho qhov "zero" thiab "tag nrho" potentiometers, nws tuaj yeem tso tawm ib qho 4-20mA DC teeb liab . Qhov txawv yog tias txoj hauj lwm transmitter raug xa mus rau lub rooj tsav xwm tso rau kev ua haujlwm los ntawm kev sib cais tshwj xeeb txuas cable.
Lub actuator thiab chav tswj tau txuas nrog sib cais los ntawm kev sib txuas tshwj xeeb. Txij li thaum qib kev tiv thaiv ntawm kev sib txuas yog IP67, nws zoo daws qhov teeb meem ntawm kev sib khi tom qab sib cais. Ob qhov kawg ntawm kev sib txuas cable yog tsau nrog plug-in terminals, uas yooj yim rau disassemble thiab sib sau ua ke. .
Qhov kev tswj xyuas nyob deb ntawm qhov chaw ua haujlwm, thiab tsis muaj teeb liab attenuation nyob rau hauv 100m ntawm lub siab txuas cable, yog li nws tuaj yeem ua haujlwm ib txwm.
Txij li thaum feem ntau cov khoom sib xyaw ua ke rau hauv chav tswj, thiab qhov chaw tswj tau nruab rau hauv qhov chaw nrog ib puag ncig zoo, kev ntseeg siab ntawm kev ua haujlwm ntawm cov khoom siv hluav taws xob tau txhim kho zoo heev, thiab tus nqi tsis ua haujlwm kuj tseem txo qis.
Kev sib cais ntawm chav tswj ua rau kev saib xyuas thiab kev debugging yooj yim heev, tshwj xeeb tshaj yog rau cov actuators ntsia rau hauv qhov hnyav thiab txaus ntshai. Cov neeg ua haujlwm tu tsuas yog yuav tsum tau ua haujlwm ntawm lub actuator, kho lub valve txoj haujlwm, hloov txwv, thiab lwm yam. Qhov no Nws tsis tsuas yog ua kom yooj yim rau kev saib xyuas thiab kev ua haujlwm debugging thiab txo cov haujlwm ua haujlwm, tab sis kuj ua kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm tu.
Kev ceev faj rau kev siv
(1) Cov qhov tsis zoo ntawm qhov sib cais actuator tau nruab rau hauv chav tswj, yog li qhov kev ua tau zoo ntawm chav tswj yog qhov siab. Qhov chaw ua hauj lwm qhov kub thiab txias ntawm chav tswj kev hloov kho yog qis dua, tab sis kev tshuaj xyuas yuav tsum tau nce siab kom ntseeg tau tias kev ua haujlwm ruaj khov.
(2) Lub tshuab hluav taws xob sib cais siv qhov kev tswj hwm thiab cov khoom siv hluav taws xob kom sib cais thiab txuas lawv nrog lub cable hauv nruab nrab. Vim yog qhov teeb meem ntawm kev sib kis teeb liab attenuation, qhov ntev ntawm kev sib cais cable yuav tsum raug txiav txim siab.
(3) Txij li thaum lub teeb liab kis tau tus mob ntawm qhov kev tswj thiab qhov actuator yog qhov tsis muaj zog, qhov teeb meem ntawm cov teeb liab tiv thaiv kev cuam tshuam yuav tsum tau xav txog.
Ib tug split actuator cais cov neeg kho tshuab ib feem ntawm lub actuator los ntawm hluav taws xob tswj ib feem. Cov khoom siv kho tshuab thiab cov li qub tau nruab rau hauv qhov chaw ib puag ncig xws li cov kav dej lossis cov dampers, thaum lub tshuab hluav taws xob tswj tau nruab rau hauv qhov chaw nrog ib puag ncig zoo los ntawm kev xaim.
Nws muaj qhov zoo hauv qab no: 1. Yooj yim rau kev debug. 2. Muaj kev nyab xeeb thiab txhim khu kev qha. 3. Kev saib xyuas yooj yim. Yog li ntawd, hom tshiab ntawm split actuator yuav yog yav tom ntej sib.
1. Cov yam ntxwv tseem ceeb ntawm cov chaw taws teeb tswj cov khoom siv hluav taws xob ntse:
* Siv cov chips loj sib xyaw ua ke nrog cov haujlwm muaj zog thiab qib siab
* Mechatronics tsim, me me thiab lub teeb yuag
* Siv tus kws tshaj lij tam sim no hysteresis sensor los ntsuas tus nqi torque ntawm cov khoom tso tawm, yog li txhim kho qhov tseeb ntawm qhov ntsuas qhov ntsuas lub zog, qhov kev ua yuam kev tsawg dua lossis sib npaug li 5% thiab tuaj yeem saib xyuas thiab nthuav tawm. Nws tuaj yeem tswb thaum lub zog dhau-torque lossis jamed rotor.
* Kev ntsuas kev txav chaw siv ib qho kev sib xyaw hybrid encoder nrog yees duab-electromagnetic technology, yog li qhov yuam kev yooj yim ntawm qhov kev ua haujlwm ntawm lub valve yog qib 1 qhov tseeb.
2. Kev ua haujlwm ntawm cov chaw taws teeb tswj cov khoom siv hluav taws xob ntse
* Kev txwv kev tiv thaiv kev ua haujlwm
* Torque txwv kev tiv thaiv muaj nuj nqi
* Dynamic qhia txog kev ua haujlwm
3. * Lub tswb muaj nuj nqi
1. Tshaj-torque tswb muaj nuj nqi
2. Jam tswb muaj nuj nqi
* Tswj lub tswb muaj nuj nqi
* Cov khoom siv hluav taws xob tswb muaj nuj nqi
