Khoom Taw Qhia
Nrog ntau tshaj kaum xyoo ntawm kev paub txog thermal tswj engineering hauv kev lag luam fais fab, ua ke nrog cov kev xav tau ntawm kev lag luam hauv tsev. FRY tau qhia, zom, thiab nqus cov qauv tsim thiab tsim tshuab ntawm ntau lub tshuab hluav taws xob siab heev los ntawm txawv teb chaws. Raws li daim ntawv thov tiag tiag ntawm cov khoom zoo sib xws, FRY tau ua ntau yam Kev Txhim Kho Lub Hom Phiaj, ua tiav lub cim tshiab ntawm kev txawj ntse integrated hluav taws xob actuators, integrating tsheb npav tswj technology, kiag li encoder technology, infrared tej thaj chaw deb tswj technology, kua siv lead ua zaub, sib nqus mus tswj, tsis muaj npog qhib thiab lwm yam kev tswj tsis siv neeg tshiab tshaj plaws rau hauv ib qho khoom ntse. FRY series ntse hluav taws xob actuators tau lees paub los ntawm kev siv tshuab thoob ntiaj teb thiab paub tab, thawj-chav ua khoom siv thiab ua tiav cov kev pabcuam. Ua pov thawj los ntawm cov neeg siv: kev ua haujlwm siab thiab muaj zog, ruaj khov thiab txhim khu kev qha, kev nyab xeeb thiab siv tau yooj yim, siab mus txog qib siab thoob ntiaj teb, yog qhov zoo tshaj plaws hloov pauv rau cov khoom siv hluav taws xob txawv teb chaws, dav siv hauv hluav taws xob, roj av, ntawv, tshuaj, hlau, cement. , Kev kho dej thiab lwm yam kev lag luam.

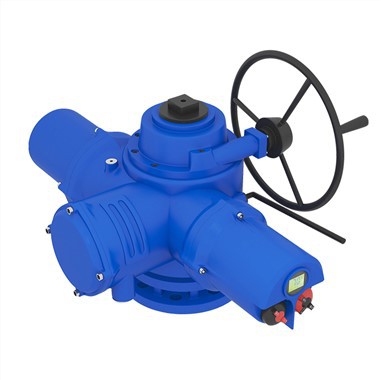

Intelligent integrated hluav taws xob actuator:
◆ Kev ua haujlwm ruaj khov thiab txhim khu kev qha
◆ Lub tswv yim tsim kev txawj ntse, tsis muaj kev cuam tshuam
◆ Kev soj ntsuam tus kheej, kev kuaj mob thiab ntau yam kev tiv thaiv
◆ Humanized, graphical Suav-English txiv neej-tshuab sib tham interface
Yam khoom
Technical Indicators
★ Kho lub sijhawm: pib lub sijhawm tuaj yeem ncav cuag 600 zaug / teev;
★ Lub cev muaj zog rwb thaiv tsev theem: F;
★ Lub cev muaj zog ua haujlwm: S2;
★ Kev txwv qhov yuam kev yooj yim: Tsawg dua lossis sib npaug rau ± 1.0%;
★ Rov qab sib txawv: Tsawg dua lossis sib npaug rau 1.0%;
★ Repeatability yuam kev ntawm stroke tswj mechanism: Tsawg dua los yog sib npaug rau 1.0%;
★ Kev tiv thaiv qib: IP67 (IP68 yeem);
★ Hom tawg-pov thawj: tawg-pov thawj qib ExdⅡBT4. POWER SUPPLY
★ Voltage: ib theem 220VAC, 50/60Hz; Peb-theem 380VAC ± 10%, 50 / 60Hz;
★ kam rau ua: zaus ± 1%; harmonic cov ntsiab lus<5%. ENVIRONMENTAL CONTITIONS
★ Ambient kub: -30 degree -+70 degree ;
★ txheeb ze av noo: Tsawg dua los yog sib npaug li 95%; FRY Hluav Taws Xob Actuator
★ Atmospheric siab: 86kPa-106kPa. KHOOM PLIG
★ Ambient kub: -10 degree -+45 degree ;
★ Cov av noo txheeb ze: Tsawg dua lossis sib npaug li 85% hauv chav ua pa, cov cua nyob ib puag ncig tsis muaj cov khoom tsis zoo uas cuam tshuam cov khoom.
Optional Model
Rau siab dua torque, FRYQ + IW / BW Series muaj.
Lub quarter-tig iav Series
Cov neeg ua haujlwm quadrant worm tau tsim los nrog cov neeg siv khoom hauv siab thiab nta lub tes tsho uas tshem tau cov hlau tawm kom yooj yim rau kev bore thiab keyway machining. Lub tes tsho cais tawm no tuaj yeem muab tso rau ntawm 90 degree .Lub hauv paus phaj tuaj yeem muab tso rau ntawm 45 degree kauj ruam. Qhov chaw no tso cai rau qhib lossis tawm qhov chaw nruab rau ntawm lub valve spool yam tsis muaj kev ua haujlwm tshwj xeeb.
Daim ntawv thov
Cov neeg ua haujlwm yog lub quarter-tig khoom siv rau kev ua haujlwm ntawm pob, ntsaws thiab npauj npaim li qub nrog rau lub zog thiab cov txheej txheem dampers. Cov gearboxes tsim nyog rau kev siv phau ntawv thiab kev siv lub cev muaj zog.
Nta
Tag nrho enclosed gearing
Roj puv rau lub neej thiab kaw tag nrho
Kev sib piv cov iav sib xyaw ua ke nrog kev xaiv cov khoom siv txhawb nqa spur iav reducers
Angular contact bearings txhawb nqa cab ncej
Tshem tawm lub tes tsho
Repositionable baseplate chaw
Adjustable mechanical nres (ntawm o degree thiab 90 degree: 5)
Environmental Specification
Cov ntaub ntawv pov thawj: IP67 tus qauv tsim nyog rau lub luag haujlwm submerged mus txog qhov tob ntawm 1 meter rau 30 feeb
Kub: -40 txog +120 C (-40 rau +250 F)
Kev xaiv
Ductile lron
IP68
Qhov kub thiab txias ntau yam -20 txog +150 C (-4 txog +302 F)
Ntxiv qhov kub thiab txias ntau yam -20 txog +200C (-4 txog + 392 9)
Qhov ntsuas kub qis qis -60 txog +120 C (76 txog +250 F)
Padlockable handwheels
Txwv cov keyboards
Lever caj npab
Cov txiv ntoo mus ncig rau cov ntawv thov uas xav tau tsawg dua 90 degree mus ncig thiab ntau dua 90
Modulating thiab multiturn
Input flanges rau motorisation
Yooj yim extensions
Interlock kev ruaj ntseg system
Enclosure lP68 haum rau submerged dej mus txog qhov tob ntawm 15 meters rau 72 teev
|
Qauv |
Revolving ceev (rpm) |
Torque (Nm) |
Qhov voltage (V) |
Phase (Ph) |
Ntau zaus (Hz) |
Lub zog (kW) |
Rated tam sim no (A) |
Lub luag haujlwm |
Qhov hnyav (kg) |
|
FRYQ 18 |
18 |
136 |
380 |
3 |
50 |
0.37 |
3.3 |
S2 (15 feeb) |
30 |
|
24 |
108 |
380 |
3 |
50 |
0.37 |
3.3 |
S2 (15 feeb) |
30 |
|
|
36 |
72 |
380 |
3 |
50 |
0.37 |
3.3 |
S2 (15 feeb) |
30 |
|
|
48 |
54 |
380 |
3 |
50 |
0.37 |
3.3 |
S2 (15 feeb) |
30 |
|
|
FRYQ 25 |
18 |
400 |
380 |
3 |
50 |
1.1 |
5.8 |
S2 (15 feeb) |
46 |
|
24 |
400 |
380 |
3 |
50 |
1.1 |
5.8 |
S2 (15 feeb) |
46 |
|
|
36 |
298 |
380 |
3 |
50 |
1.1 |
5.8 |
S2 (15 feeb) |
46 |
|
|
48 |
244 |
380 |
3 |
50 |
1.1 |
5.8 |
S2 (15 feeb) |
46 |
|
|
FRYQ 35 |
18 |
610 |
380 |
3 |
50 |
1.5 |
9.5 |
S2 (15 feeb) |
69 |
|
24 |
610 |
380 |
3 |
50 |
1.5 |
9.5 |
S2 (15 feeb) |
69 |
|
|
36 |
542 |
380 |
3 |
50 |
1.5 |
9.5 |
S2 (15 feeb) |
69 |
|
|
48 |
474 |
380 |
3 |
50 |
1.5 |
9.5 |
S2 (15 feeb) |
69 |
|
|
FRYQ 40 |
18 |
1020 |
380 |
3 |
50 |
2.2 |
14.2 |
S2 (15 feeb) |
190 |
|
24 |
1020 |
380 |
3 |
50 |
2.2 |
14.2 |
S2 (15 feeb) |
190 |
|
|
36 |
845 |
380 |
3 |
50 |
2.2 |
14.2 |
S2 (15 feeb) |
190 |
|
|
48 |
680 |
380 |
3 |
50 |
2.2 |
14.2 |
S2 (15 feeb) |
190 |
|
|
FRYQ 70 |
18 |
1490 |
380 |
3 |
50 |
3 |
18.2 |
S2 (15 feeb) |
200 |
|
24 |
1490 |
380 |
3 |
50 |
3 |
18.2 |
S2 (15 feeb) |
200 |
|
|
36 |
1290 |
380 |
3 |
50 |
3 |
18.2 |
S2 (15 feeb) |
200 |
|
|
48 |
1020 |
380 |
3 |
50 |
3 |
18.2 |
S2 (15 feeb) |
200 |
|
|
FRYQ 90 |
18 |
2030 |
380 |
3 |
50 |
5.5 |
32 |
S2 (15 feeb) |
200 |
|
24 |
2030 |
380 |
3 |
50 |
5.5 |
32 |
S2 (15 feeb) |
200 |
|
|
36 |
1700 |
380 |
3 |
50 |
5.5 |
32 |
S2 (15 feeb) |
200 |
|
|
48 |
1355 |
380 |
3 |
50 |
7.5 |
32 |
S2 (15 feeb) |
200 |
|
|
FRYQ 95 |
18 |
3000 |
380 |
3 |
50 |
7.5 |
42 |
S2 (15 feeb) |
200 |
|
24 |
3000 |
380 |
3 |
50 |
7.5 |
42 |
S2 (15 feeb) |
200 |
Multi-tig Gearbox Series
Cov tswv lag luam ntau tig tau tsim nrog cov neeg siv khoom hauv siab, thiab nta lub tes tsho tshem tawm kom pab txhawb spindle machining.
Kev khiav hauj lwm kub ib txwm nyob ntawm -40 mus rau +120 C txawm hais tias muaj lwm qhov kub ntawm qhov kev thov. Standard input thiab output flanges yog rau lSO 5210.
Daim ntawv thov
Cov neeg ua haujlwm yog cov khoom siv ntau tig rau kev ua haujlwm ntawm lub rooj vag, lub ntiaj teb, sluice thiab penstock li qub. Cov gearboxes no yog tsim los rau kev siv lub cev muaj zog.
Environmental Specification
Enclosure IP67 tus qauv tsim nyog rau lub luag haujlwm submerged mus txog qhov tob ntawm 1 meter rau 30 feeb. Enclosure IP68 nruam submerged lub luag haujlwm mus txog qhov siab tshaj plaws ntawm 15 meters.
Nta
Npog tag nrho
Gearing grease puv rau lub neej thiab kaw tag nrho
Comprehensive iav ratios
Tshem tawm lub tes tsho
Spur thiab bevel ob peb ua ke muaj Input iav mounted ntawm pob bearings
Ntau cov tswv yim thiab tso tawm flanges rau suitactuators thiab li qub
Quarter-tig Gearbox
