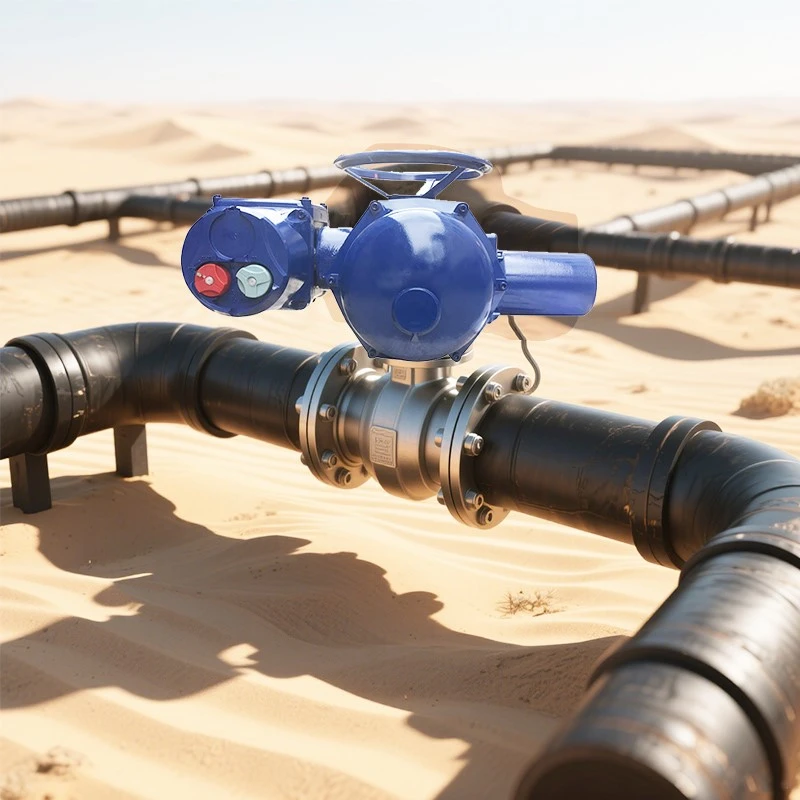

Hluav taws xob actuator
Multi -} Tig modulating ntau yam ntawm lub vag valve, kub siab thiab siab hloov chaw, thiab lub zog yog 30-700nm. Kev tiv thaiv qib: IP67.
Qhov Zoo
Khoom nta
• Kev cog lus kev cog lus, cov zis loj torque
• Tus kheej - xauv cia lub tsheb ciav hlau yuav tuaj yeem tswj hwm lub valve thaum tus actuator yog -}}} energized
• Kev co zoo heev • Teeb tau yooj yim heev {{}}} Tsis muaj cov cuab yeej siv tshwj xeeb
• Cov kws kho tshuab kho kom haum rau kev txwv kom tsis txhob tiv thaiv kom tsis txhob muaj kev ua haujlwm tau yooj yim
• Txhua tus neeg ua tau nruab nrog kev ua haujlwm thaum muaj xwm txheej ceev thiab cov khoom siv khomob ua haujlwm taw qhia raws li tus qauv
Txoj Kev Tswj Xyuas
Hloov Kev Tswj
Cov qhua tuaj noj mov muab txoj kev tswj hwm tswj cov txheej txheem txhua cov ntaub ntawv los ntawm cov actuator. Tus thim rov qab yog nyob hauv cov neeg siv tswj txee.
Kev Tswj Sib Tsoo
Qhov tseem ceeb + tswj cov txheej txheem yog tag nrho kev teeb tsa thiab tuaj yeem siv txhua tus neeg tswj hwm kev tswj hwm, nrog rau kev tiv thaiv xwm txheej, kev tiv thaiv system thiab kev ua haujlwm.
Cov lus qhia ntawv tshaj plaws + Kev tswj hwm yog nyob ntawm tib lub tshuab hluav taws xob sib xyaw ua ke +, nrog txoj haujlwm pub dawb. Lub teeb liab linear yog siv los tswj tus actuator (txoj hauj lwm taw tes) thiab qhov tseeb txoj hauj lwm ntawm kev tswj hwm valve (tswv yim).
Intellisti + ® tswj
Intellisti + ® tuaj yeem teeb tsa yam tsis qhib lub hau.
Intellisti + ® tau nruab nrog LCD zaub thiab cov cuab yeej muaj feem xyuam nrog cov cuab yeej rau kev tiv thaiv.
Hluav Taws Xob Thiab Tswj
Txoj Kev Tswj
Kev Tswj Xyuas Hauv Zos: Kev Ua Haujlwm, Infrared Setter Kev Ua Haujlwm
DCS
Tej thaj chaw deb hloov tswj: Passive qhuav tiv toj, DC24V
Tej thaj chaw deb hluav taws xob tswj: DC4-20ma
Esd tswj
Sib Xws Ua Haujlwm Tswj
Ob {- xaim tswj
FCS (teb tswj cov kab ke)
Tsheb npav Lus Tswj Function:
Qhov kev sib txuas lus module saws tus qauv ywj siab ua ke ntawm lub rooj sib tham tseem ceeb kom tau raws li cov kev xav tau ntawm kev sib txuas lus sib txawv thiab kev sib txuas lus sib txuas lus. Tam sim no txhawb txoj kev sib txuas lus muaj xws li modbus rtu, prolibus {} i} dp v0, hart, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, dev, zam (xaiv tau).
Cov chaw taws teeb infrared tswj ua haujlwm:
Cov Actuator siv cov chaw taws teeb siab dua cov chaw taws teeb tswj kev tswj cov tshuab, uas ua rau tib neeg - kev sib tham los ntawm kev sib tham sib txawv. Txawm nyob rau hauv cov xwm txheej txaus ntshai, kev nyab xeeb kev tswj hwm cov chaw taws teeb yeem muaj kev nyab xeeb parameter thiab tejfope ua haujlwm ntawm cov actuator.
|
Profibus |
{{0- teb teb yog cov kev ntseeg siab tshaj plaws thiab siv cov kev sib txuas lus rau kev lag luam uas Cov ntaub ntawv discetre. Cov khoom no tau muaj ntawv pov thawj los ntawm cov Profibus International. -} Txhawb cov profibus dp v0, profibus dp v1 thiab profibus redcom redundancy |
|
Modbus |
{{0- Cov khoom no ua raws cov qauv kev sib txuas lus, uas yog qhov feem ntau Thiab txoj kev sib txuas lus yooj yim tshaj plaws los thov cov chaw muaj kev lag luam. Piv nrog lwm Kev sib txuas lus sib txuas lus, cov khoom no tuaj yeem siv rau lub xaib ntau qhov pheej yig dua thiab nrawm. {{0- Tam sim no, modbus - rt cov khoom yog muab, thiab cov neeg tuaj yeem xaiv lwm cov kev xaiv xws li Modbus - ASCII thiab Modbus - tcp. |
|
F/F |
- Kev Sib Txuas Lus Sib Txuas Lus Siv Hauv Cov Txheej Txheem Tswj Xyuas Kev Tswj Xyuas xws li roj thiab roj; Cov khoom no tau muaj ntawv pov thawj los ntawm daim teb Foundation. |
|
Tus ntxhw |
- Lub Hart (Highway Chaw Nyob Tej thaj chaw deb chaw deb hloov pauv) Kev sib txuas lus kev ua tiav kev tswj hwm los ntawm Ntxiv cov ntaub ntawv digital rau 4-20ma kis teeb liab. - Cov khoom no yog sau npe nrog HCF (HART kev sib txuas lus hauv Foundation) |
Meej torque ntsuas thiab kev tiv thaiv
Kev tsim qauv tsim tawm tsim kho cov khoom lag luam actuator kev tiv thaiv thiab kev saib xyuas tiag tiag ntawm lub valve torque hloov:
(Tus qauv kev teeb tsa) Kev ntsuas cov khoom siv ua haujlwm: Cov khoom siv kho tshuab ua haujlwm ua haujlwm Peb tau ua kom zoo dua thiab hloov kho nws ntawm tus thawj lub zog, ua rau lub zog torque ntau rhiab thiab nws cov kev pabcuam lub neej zoo dua.
(Xaiv tau) Electronic toreque ntsuas: los ntawm kev ntsuas tiag tiag, thiab ua haujlwm nrog lub microcontroller rau cov khoom siv hluav taws xob, thiab kev ntsuas qhov ntsuas tau thiab ntsuas tau tas mus li; Qhov system no tsis tas yuav xav txog cov neeg kho tshuab hnav, uas txhim kho kev ntseeg tau ntawm cov kab ke.
Lub cev muaj zog ntsuas thiab kev tiv thaiv
Kev kub dhau: thaum lub cev muaj zog tshaj cov teeb overheat tiv taus tus nqi, lub cev muaj zog tsis muaj kev khiav tawm, thiab lub cev muaj zog overheat tswb nrov. Overloload thiab Circuit Court: Lub Circuit Court yog tsim nrog Adi lub zog hluav taws xob hloov siab nti tau kom tau kev ntsuas kom meej ntawm ntau yam kev hloov pauv tam sim no; Cov overload anti -} ncua cov yam ntxwv thiab luv-} Circuit Court tiv thaiv raws li cov qauv.
Instantaneous tiv thaiv: Siv Instantaneous Rebet Technology, thaum tus actuator tau kaw qhov kev ua haujlwm tom qab, thiab tom qab ntawd ua kev pabcuam tom qab kev puas tsuaj rau cov tshuab ua kom sib kis.
Englon Brake: tus modulating hluav taws xob actuator ntseeg tau tias lub chaw nres tsheb valve ntawm lub teeb valve txoj hauj lwm los ntawm kev tuag cheeb tsam chaw thiab nres hluav taws xob.
Khoom lag luam Spare xeem
Daim teb kev siv
Txheem Cov Qauv
|
Torque |
Multi - Tig: 30-700nm |
|
Khoom siv lub plhaub |
Tuag - Nrumin |
|
Txoj Kev Tswj Xyuas |
Nyob rau - tawm hom / qhov chaw ua haujlwm / modulating |
|
Kev Tiv Thaiv Qib |
Tus Qauv IP67 |
|
Txheej Txheej |
Cationic epoxy txheej / xaiv tiv thaiv cov mob corrosive heev Cov ntsia hlau zawm tau tag nrho cov hlau stainless |
|
Thaj kub cua sov |
Txheem: {-20-+70℃temp .: 0-+90 {{{}} degree |
|
Lub cav |
Nquirrel tawb lub cev muaj zog, Rwb thaiv tsev chav kawm f, ua - hauv kev tiv thaiv thermal |
|
Lub Luag Hauj Lwm Thiaj
|
S4 {- 30%: On-off hom, max tus naj npawb ntawm pib ib teev yog 360 zaug S4-30%: Txoj Haujlwm Ntaus, Max tus naj npawb ntawm pib ib teev yog 360 zaug S4-50%: Modulating Hom, Max tus naj npawb ntawm pib ib teev yog 1200 zaug |
|
Iav Tsim |
Tus kheej - xauv xauv txhua qhov nrawm |
|
Tso zis Flange |
Multi - Tig: Iso5210 Tus Qauv |
|
Tso zis ncej
|
Tus tsav cov bushing tuaj yeem raug tshem tawm thiab ua tiav raws li xav tau. Nws tuaj yeem raug ntsia cov kab rov tav lossis kab rov tav. |
|
Anti - kev co ua haujlwm |
1G 9.8M / S² 10-500HZ |
|
Lubrication |
Actuator lubrication rau lub neej |
|
Kev Lag Luam Kev Ua Haujlwm |
Los ntawm txhais tes thiab hluav taws xob ua haujlwm tuaj yeem hloov tau dawb do |
|
Kev pab fais fab |
1phase, 3phase, 50 / 60Hz, txog 480V |
|
Txoj |
Sab hauv thiab sab nraud hauv av terminals |
|
Hlua nkag |
NPT 4 X3/4 ", NPT1", NPT 1-1 / 2 "Yeem |
|
Daim phiajcim relay |
4 Relay: Xaiv los ntawm 23 txoj kev xaiv Hu rau Coniguration: Feem ntau qhib lossis ib txwm vlosed Min tam sim no: 10ma ntawm 5V Max tam sim no: 5A ntawm 250V AC lossis 5A ntawm 30VDC (inductive thauj) Yeem Accessories 3 Relays |
|
Txhaum relay |
Spdt monostable relay, nyob rau hauv txoj haujlwm ua haujlwm thaum tsis muaj zog Min tam sim no: 10ma ntawm 5V Max tam sim no: 5A ntawm 250V AC lossis 5A ntawm 30V DC (inductive thauj) |
|
Kev Tswj Xyuas Analog |
Cov tswv yim (chaw) thiab tsim tawm (tswv yim) cov cim tau cais tag nrho Cov teeb tsa teeb liab: • Cov cim qhia cov cim: 4 -}} 20 ma - cov zis teeb liab: 4-20ma • Cov cim qhia tawm: 0 -} 20 ma - cov zis paib: 0-20ma • Cov cim qhia cov npe: 0 - 10 v - cov zis paib: 0-20ma (0 ~ 10V nrog sab nraud resistor) Cov lus qhia analog: • Tam sim no: Impedance 160 Ohms • Voltage: impedance 11 kohms Analog Tsim Tawm: • Tam sim no: Qhov kawg lav ris yog 750 ohms thaum muaj hwj chim los ntawm 24VDC • Voltage: Qhov tsawg kawg uas siv tau yog 50 kohms (shunt resistor 500 Ohms) |
|
Mus Ncig Hloov Mus |
4 SPDT txwv hloov Hloov Peev Xwm: Max 250Vac-16A / 48VDC-2.5A (Resistive Load) |
|
Torque txwv mus |
Lub Torque txwv hloov yog qhov tsis - tus kheej - tuav hloov. Ib khub ntawm SPDT hloov tau yog tus qauv. Hloov Peev Xwm: Max 250Vac-16A / 48VDC-2.5A (ResistiveTib) |
|
Tej thaj chaw deb txoj hauj lwm teeb liab |
1000 fotentiometer, 0.3W, txwv tsis pub mus sib cuag tam sim no 1ma Txoj hauj lwm transcitter: 4-20mA |
Kev tsis muaj
Stuti -} Tig hluav taws xob actuator 3p-380V 50Hz
|
Tus zuag torque Nm |
Kev ua hauj lwm torque Nm |
Tus qauv |
Hov ceev rpm |
Sij hawm S |
Kev sib txua flange ISO |
S4-50% |
|||
|
Hwjchim Kw |
Hov ceev rpm |
Rated tam sim no A |
Pib Niaj hnub A |
||||||
|
60 |
30 |
St6 |
11 |
5.42 |
F10 |
0.10 |
750 |
0.80 |
1.60 |
|
16 |
3.75 |
0.10 |
750 |
0.80 |
1.60 |
||||
|
23 |
2.61 |
0.37 |
1500 |
1.10 |
5.00 |
||||
|
30 |
2.00 |
0.37 |
1500 |
1.10 |
5.00 |
||||
|
46 |
1.30 |
0.37 |
1500 |
1.10 |
5.00 |
||||
|
140 |
70 |
St14 |
11 |
5.42 |
F10 |
0.37 |
1500 |
1.10 |
5.00 |
|
16 |
3.75 |
0.37 |
1500 |
1.10 |
5.00 |
||||
|
23 |
2.67 |
0.50 |
1500 |
1.50 |
5.00 |
||||
|
61 |
0.98 |
0.90 |
1500 |
2.70 |
14.0 |
||||
|
300 |
150 |
St30 |
16 |
3.75 |
F14 |
0.90 |
1500 |
2.70 |
21.0 |
|
23 |
2.67 |
1.50 |
1500 |
3.70 |
52.0 |
||||
|
61 |
0.98 |
2.20 |
1500 |
5.10 |
8.5 |
||||
|
700 |
350 |
St70 |
16 |
3.75 |
F16 |
2.20 |
1500 |
5.10 |
27.0 |
|
23 |
2.67 |
3.00 |
1500 |
7.20 |
37.0 |
||||
|
61 |
0.98 |
4.00 |
1500 |
9.10 |
52.0 |
||||
Stuti -} Tig Hluav Taws Xob|Actuator 1P-220V 50HZ
|
Tus zuag torque Nm |
Kev ua hauj lwm torque Nm |
Tus qauv |
Hov ceev rpm |
Sij hawm S |
Kev sib txua flange ISO |
S4-50% |
|||
|
Hwjchim Kw |
Hov ceev rpm |
Rated tam sim no A |
Pib Niaj hnub A |
||||||
|
50 |
40 |
Sra6 |
26 |
2.31 |
F10 |
0.20 |
1500 |
2.50 |
3.50 |
|
60 |
40 |
17 |
3.53 |
0.20 |
1500 |
2.50 |
3.50 |
||
|
60 |
40 |
10 |
6.00 |
0.20 |
1500 |
1.20 |
1.70 |
||
|
130 |
80 |
SRc |
9 |
6.67 |
F14 |
0.20 |
1500 |
2.50 |
3.50 |
|
60 |
30 |
St6 |
11 |
5.42 |
F10 |
0.10 |
750 |
2.50 |
3.00 |
|
50 |
30 |
16 |
3.75 |
0.10 |
750 |
2.50 |
3.00 |
||
|
60 |
30 |
23 |
2.61 |
0.40 |
1500 |
4.00 |
6.30 |
||
|
55 |
30 |
30 |
1.30 |
0.40 |
1500 |
4.00 |
6.30 |
||
|
40 |
30 |
46 |
2.00 |
0.40 |
1500 |
4.00 |
6.30 |
||
|
140 |
70 |
St14 |
11 |
5.42 |
F10 |
0.30 |
1500 |
3.50 |
15.0 |
|
140 |
70 |
16 |
3.75 |
0.30 |
1500 |
3.50 |
15.0 |
||
|
110 |
70 |
23 |
2.67 |
0.30 |
1500 |
3.50 |
15.0 |
||
|
60 |
60 |
61 |
0.98 |
0.30 |
1500 |
3.50 |
15.0 |
||
